The RF-ZZ2C A3 UV Printer delivers industry-leading precision with a 2880dpi high-resolution output, ensuring sharp text, vibrant graphics, and smooth gradients on diverse materials. As a versatile UV DTF printer option, it features advanced LED UV curing technology for instant drying—eliminating smudges and enabling immediate post-processing, which significantly boosts production efficiency for high-volume orders. It's an A3 printing size (320×580mm) that balances versatility and productivity, making it ideal for small to medium-sized businesses and distributors catering to varied client demands.

Technical Highlights:
Dual Heads Epson F1080/XP600
CMYK+White+Varnish 6colors UV Inks system
Vacuum Table Included
Effective Printing Area: 32cmx58cm
110V/ 220V Available, US | AU | UK | EU plug standard
Materials: Print directly on Flat items; UV DTF for light-curve items

Voltage:
Availability:
Availability:
Quantity:

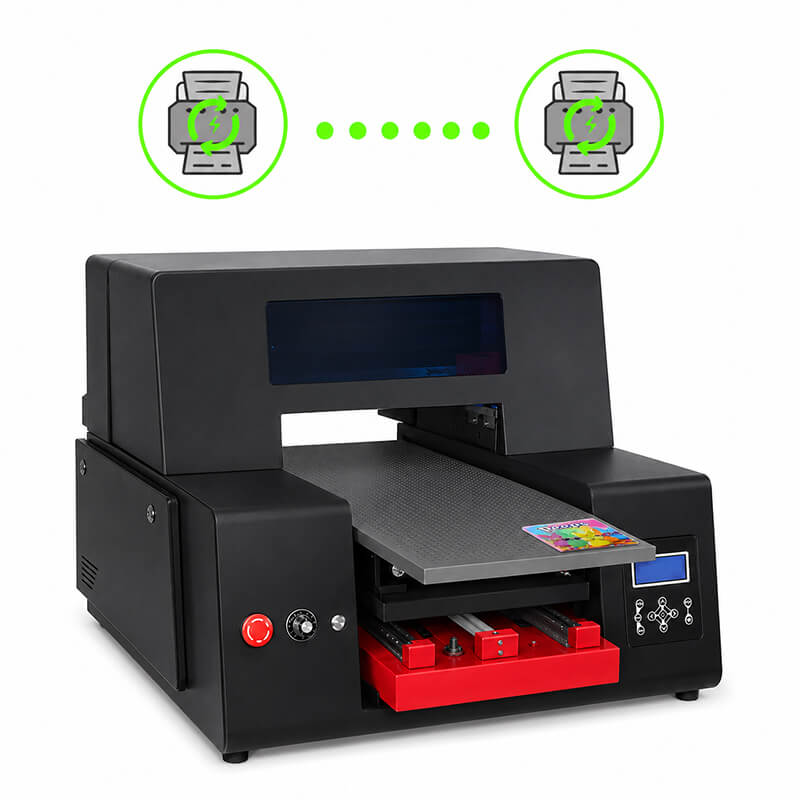

RF-ZZ2C A3 UV Flatbed Printer: Professional Solution For High-Quality Printing Distribution

Multifunction Printing Machine

RF-ZZ2C-UV-Printer-for-your-business

The RF-ZZ2C A3 UV Printer delivers industry-leading precision with a 2880dpi high-resolution output, ensuring sharp text, vibrant graphics, and smooth gradients on diverse materials.


As a versatile UV DTF printer option, it features advanced LED UV curing technology for instant drying—eliminating smudges and enabling immediate post-processing, which significantly boosts production efficiency for high-volume orders.


It's an A3 printing size (320×580mm) that balances versatility and productivity, making it ideal for small to medium-sized businesses and distributors catering to varied client demands.

Quality From The Details

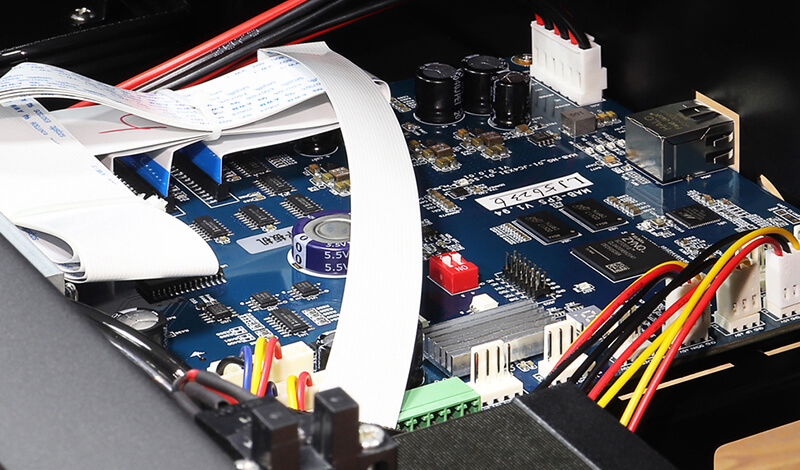

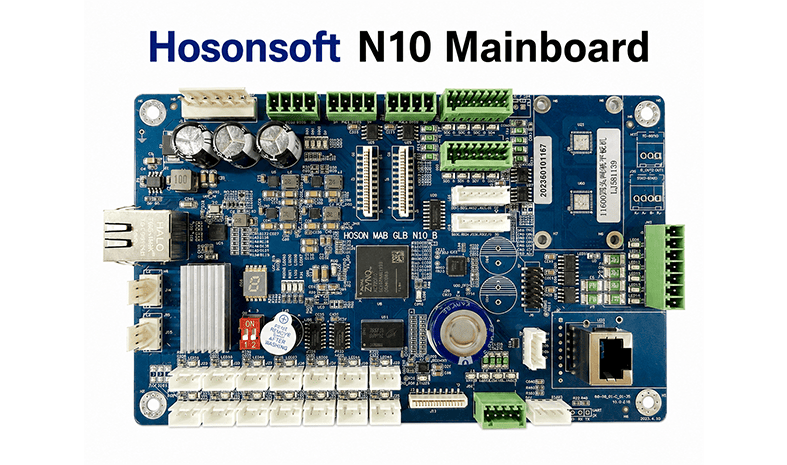

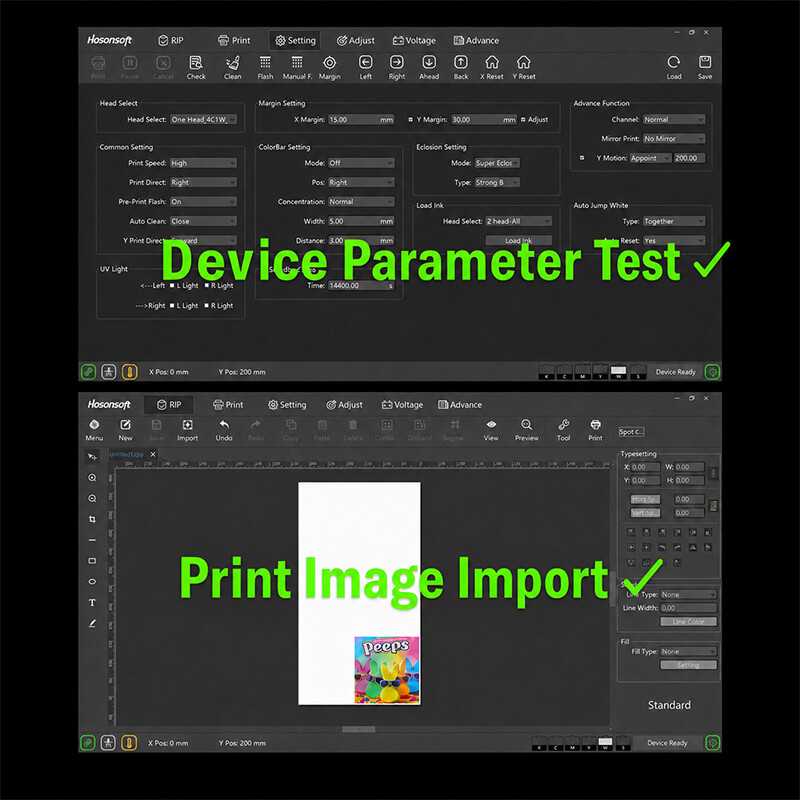

The RF-ZZ2C A3 UV Flatbed Printer using Hosonsoft control boards and Riprint software system that stands out as the industry-preferred solution. They are widely adopted in professional UV flatbed printers, hybrid printers, and small-format A3/A1 UV printers.

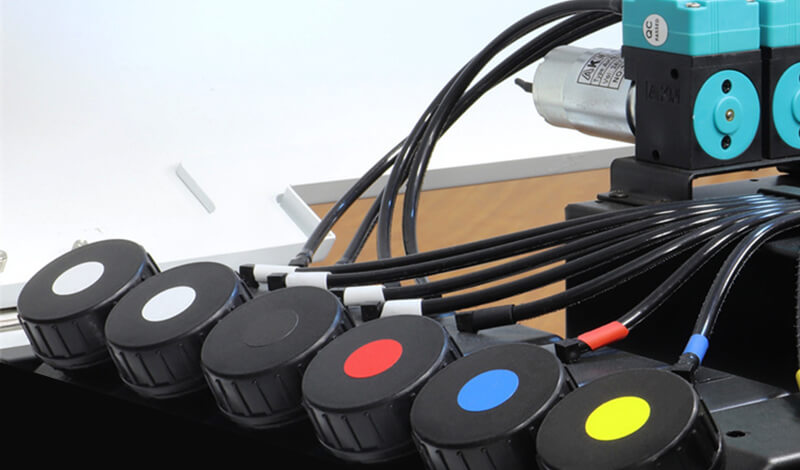

1.Multi-layer-printing

Multi-layer printing (Color + White + Varnish in one pass)

Details2

ICC-based color management

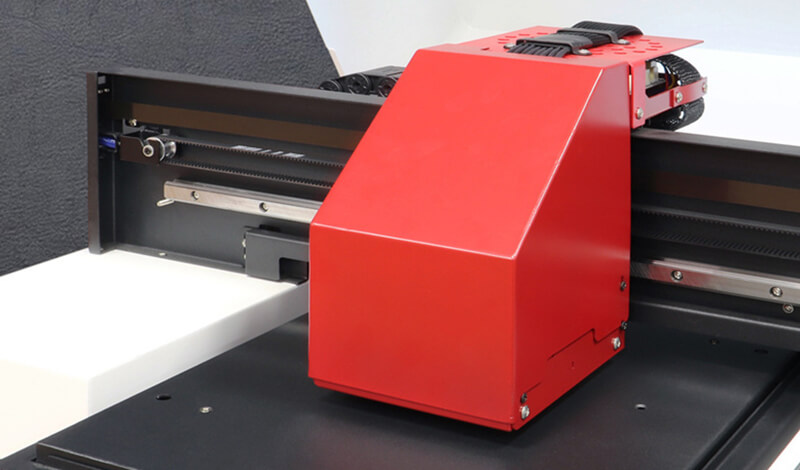

Details3

High-speed data processing for Epson printheads

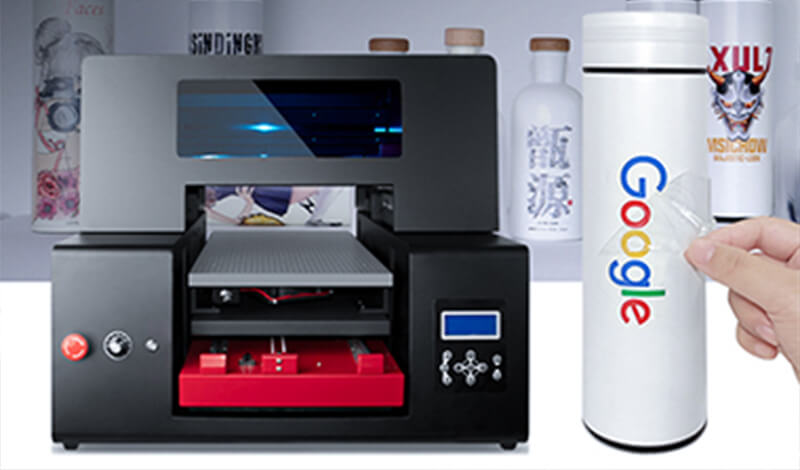

Details

Smooth grayscale ink droplet control

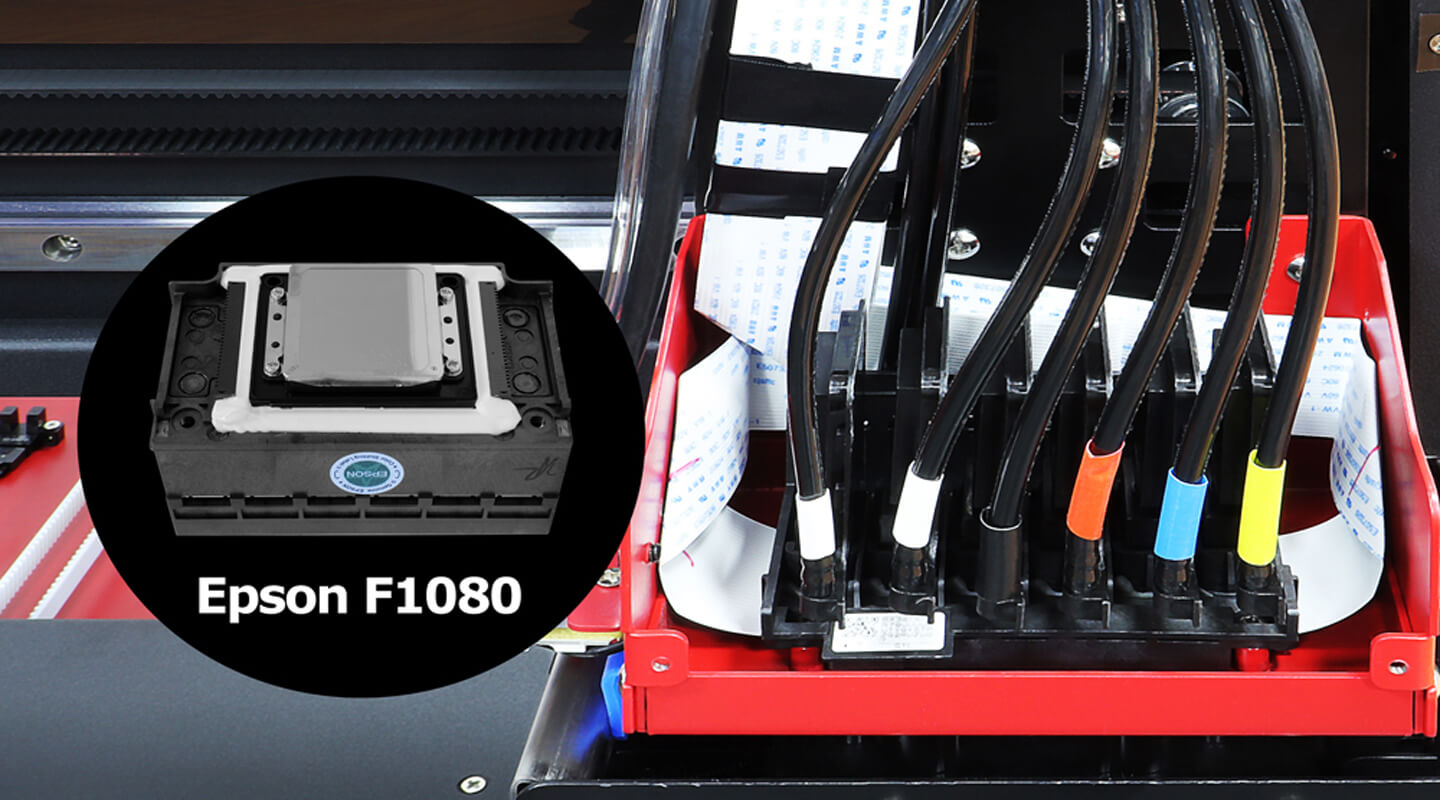

As we all know, Epson Printhead micro piezo inkjet technology prints high-precision quality; RF-ZZ2C UV LED Printer has installed 2pcs EPSON F1080 not XP600 any more;

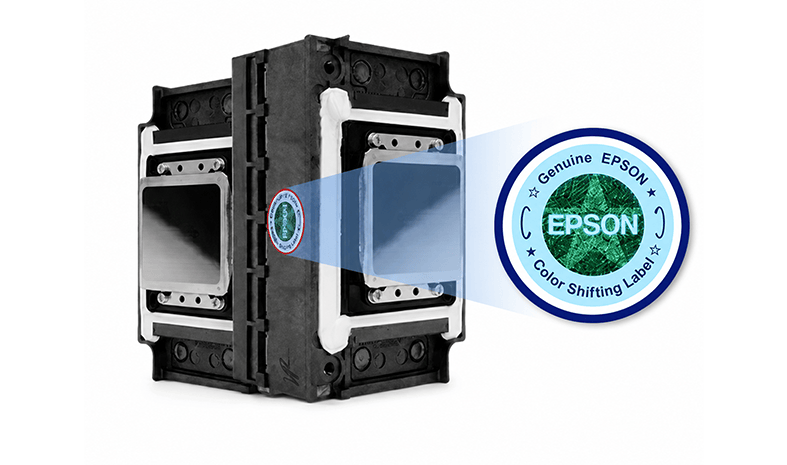

The Epson F1080 is a genuine, original Epson industrial printhead, unlike XP600 units commonly found online, which are often:

The Epson F1080 is a genuine, original Epson industrial printhead, unlike XP600 units commonly found online, which are often:

 Refurbished

Extracted from old home printers

Repaired or remanufactured

Inconsistent in lifetime and stability

The F1080 is manufactured for professional, high-precision inkjet equipment, ensuring:

Stable firing frequency

Long-term reliability

Consistent droplet formation

Much lower failure rate

User-Friendly Operation & Smart Integration

As users, they print a variety of materials, requiring UV printers to be equipped with a suction platform; they also need a larger printing area, with most startups finding a 13x23.5 inch printing size sufficient; the ZZ2C perfectly meets the requirements of these customers; to prevent the printhead from touching the printed material, UV printers should also be equipped with infrared technology to extend the printhead's lifespan.

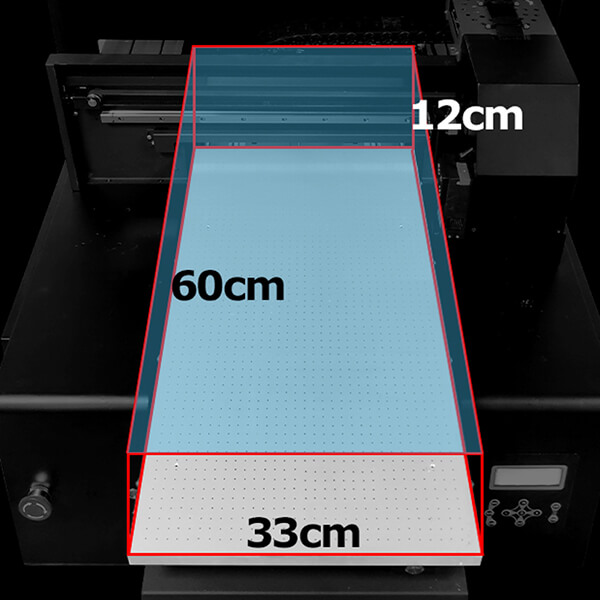

Printing Area Of The RF-ZZ2C UV Inkjet Printer

RF-ZZ2C2
RF-ZZ2C

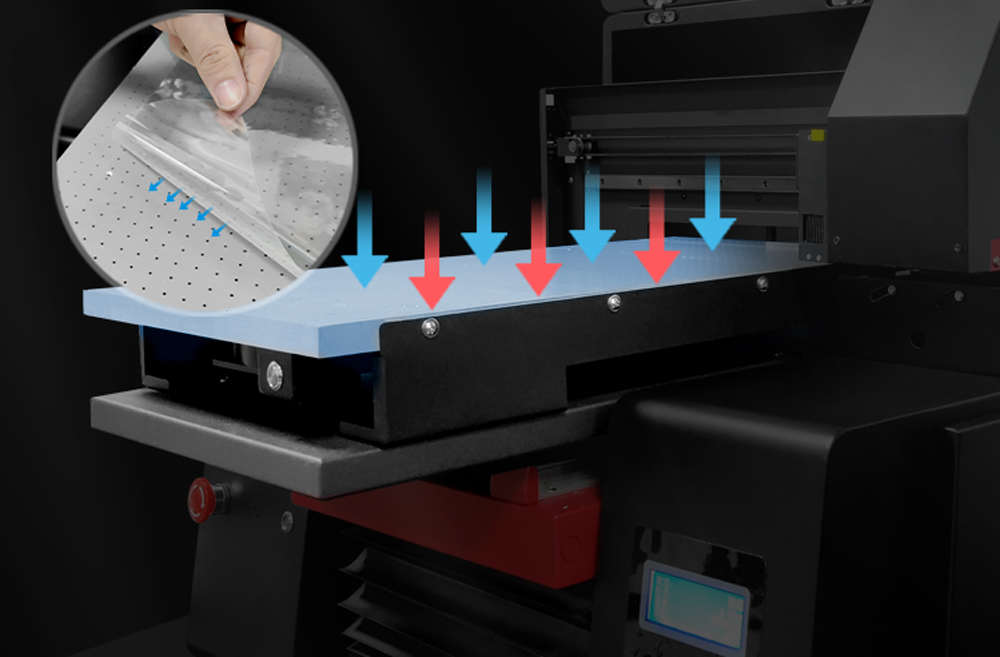

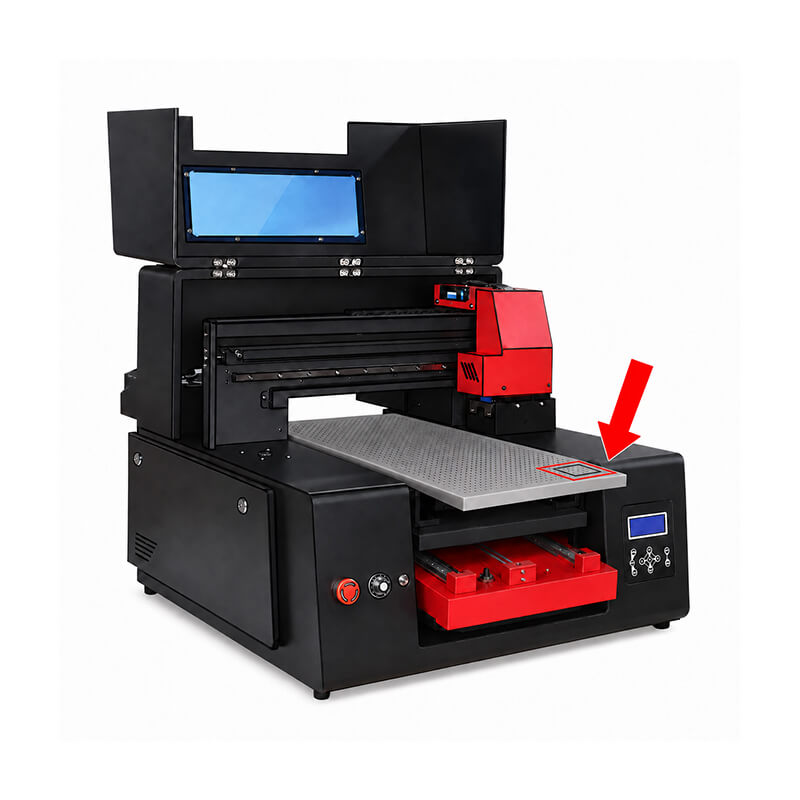

Vacuum-table

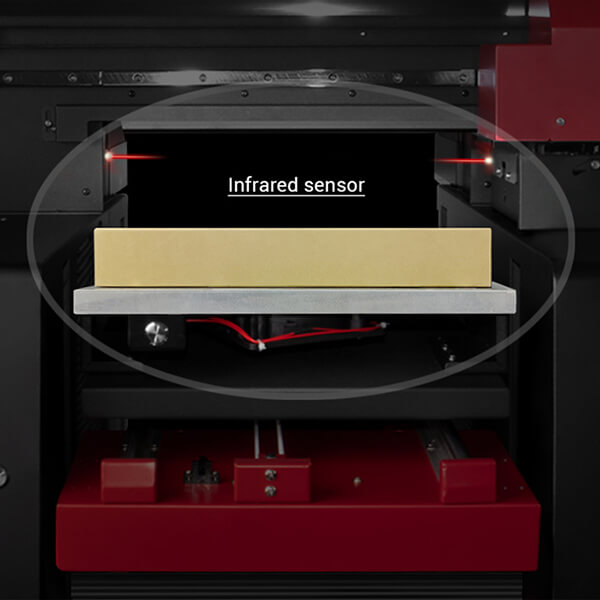

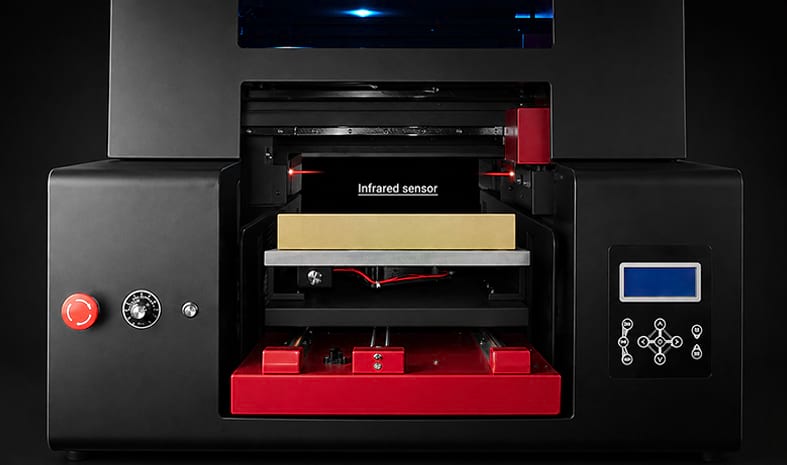

Automatically detects the material height to prevent printhead collisions

The infrared sensor measures the height of the printing media (such as phone cases, wood boards, metal sheets, acrylic panels, etc.).

Detect the highest point of the material

Automatically adjust the printhead or platform height

Prevent the printhead from hitting the material

This significantly reduces the risk of printhead damage and machine downtime—it's one of the core safety features of a UV printer.

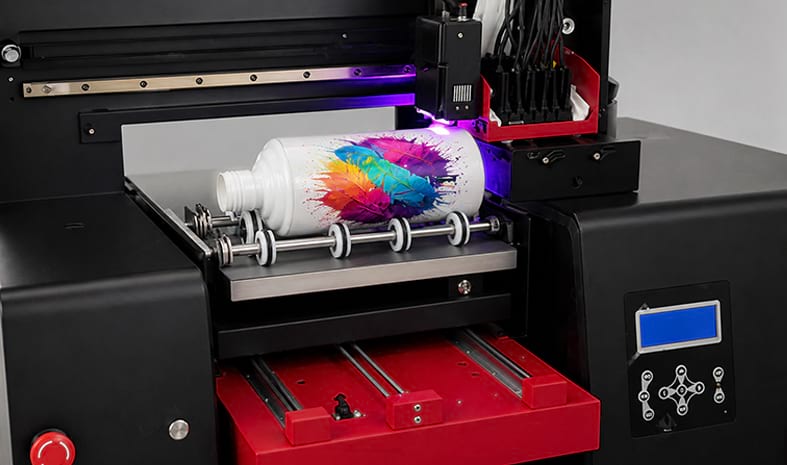

rotary-uv-printer

Not only for printing flat items, the UV Printer for tumbler is also becoming more and more popular

Rotary Attachment (Rotary Axis) Converts Rotation into Linear Printing. To print on a curved surface, the UV printer uses a rotary device (also called a rotary jig or rotary axis).

How it works:

a. The cylindrical object is fixed onto the rotary attachment.

b. As the printhead moves horizontally, the rotary device rotates the cylinder synchronously.

c. This rotation ensures that every part of the curved surface passes under the printhead at the correct speed.

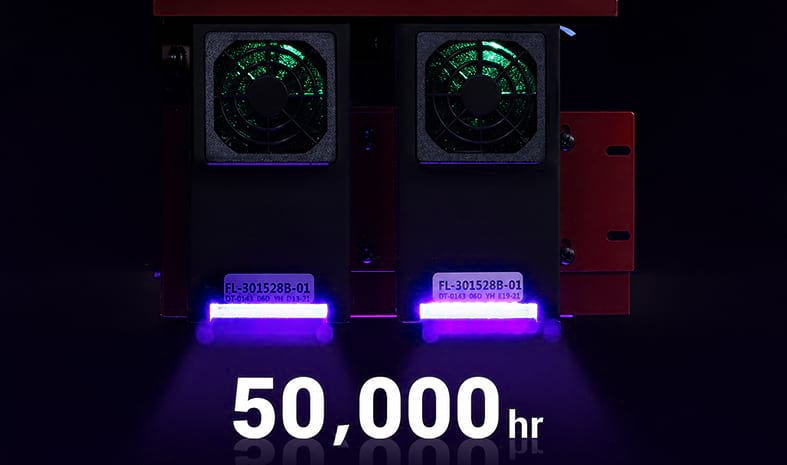

Air-Cooling Systems Are Simpler and More Reliable

Small UV printers (A3/A4 size) don't generate as much heat as large industrial printers. For this level of heat output, a high-efficiency air-cooling module is enough.

Fewer components

No water tank, pump, or tubing

Lower risk of breakdown

No danger of water leakage damaging electronics

UV-Lamp-Printer_01

Reliable After-Sales & Technical Support

A3 UV DTF Printer With AB Film -

We provide global technical assistance to ensure distributors receive timely support, including installation guidance, operator training, and troubleshooting for this LED UV curing printer. The printer comes with a 1-year warranty covering core components, plus access to a comprehensive spare parts inventory for quick replacements. Our dedicated team offers customized solutions for bulk orders of this multi-material UV printing machine, helping you scale your business and meet market demands efficiently.

Why Choose RF-ZZ1C For Your Distribution Business?

High Profit Margins

Competitive pricing and low operational costs maximize your revenue potential.

Market Versatility

Cater to diverse industries (advertising, crafts, electronics, automotive) with one UV flatbed printer that supports both rigid and flexible materials.

Quality Assurance

ISO 9001-certified production ensures consistent performance and durability.

Sustainable Design

Eco-friendly UV inks (RoHS compliant) meet international environmental standards, appealing to eco-conscious clients.


Elevate your printing business with the RF-ZZ1C A3 UV Flatbed Printer—where performance, efficiency, and reliability drive success as a top-tier UV DTF printer solution.

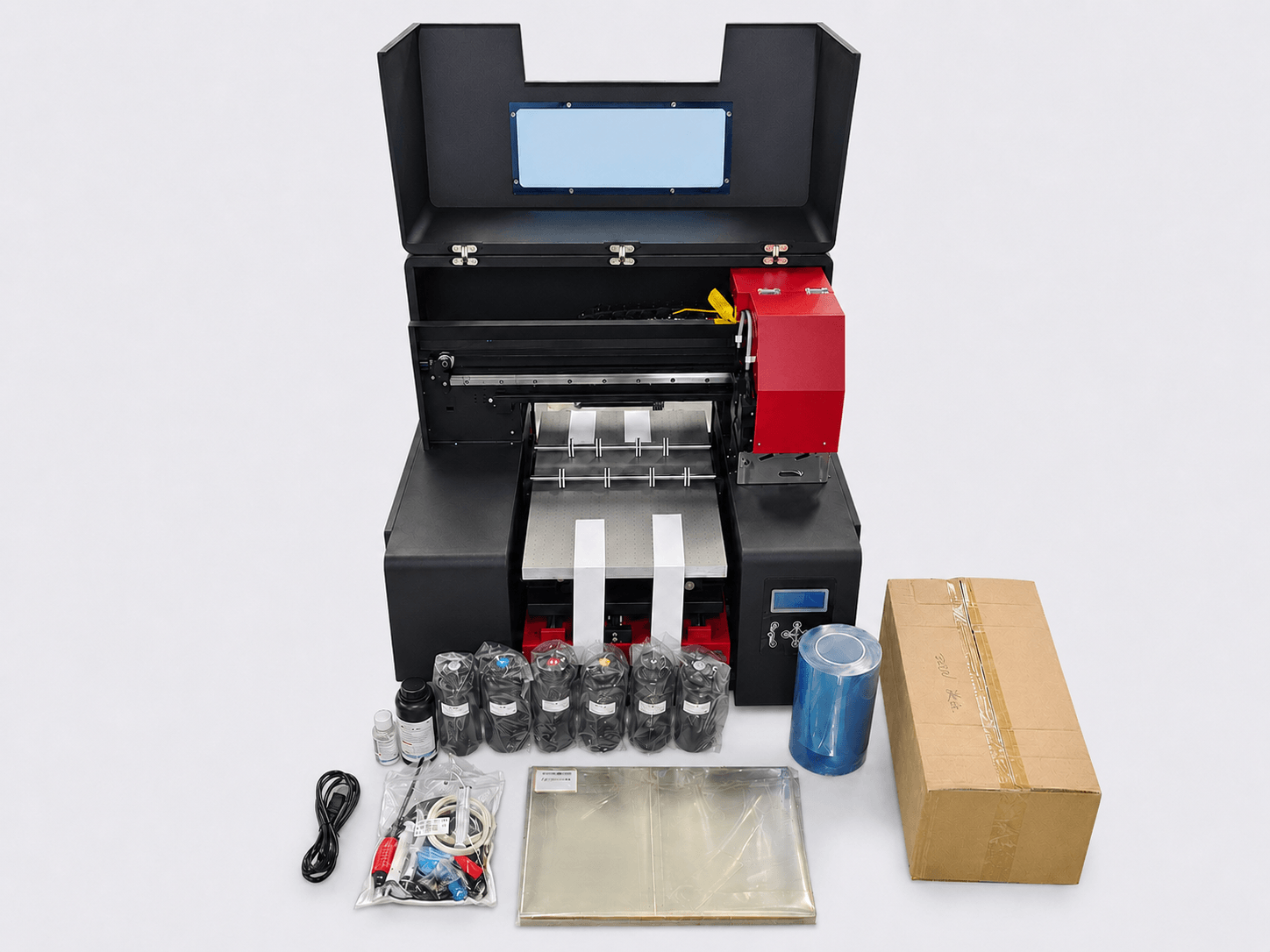

Packing List

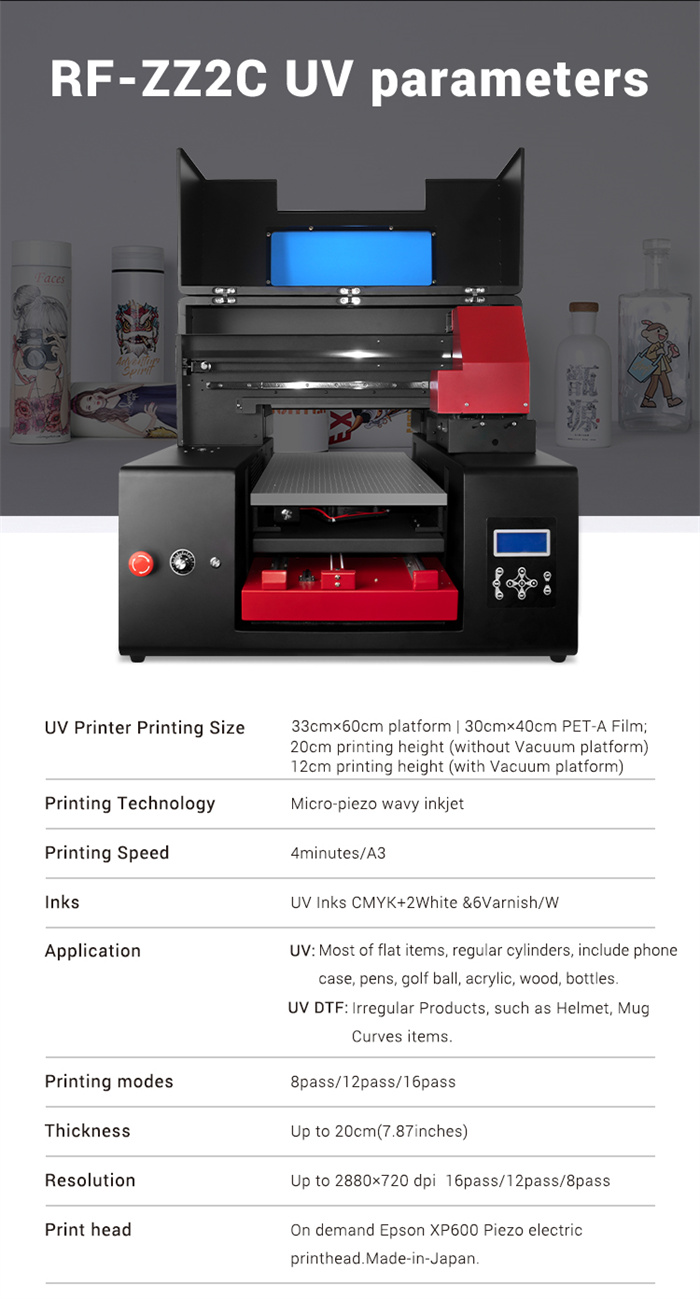

详情页-20219_18
RF-ZZ2C UV Printer(Vacuum table installed)
CMYK White Varnish 6x500ml uv inks x1set
500ml cleaning liquid
100 sheets A film+1 roll B Film-extra part- for UV DTF printing
Laminator-extra part- for UV DTF printing
Basic accessories include Power line, Ethernet Cables, Dampers, cables, English manual, etc.

Machine Parameters

UV Printer Printing Size

33cm×60cm platform | 30cm×40cm PET-A Film;

20cm printing height (without Vacuum platform)

12cm printing height (with Vacuum platform)

Printing Technology

Micro-piezo wavy inkjet

Printing Speed

4minutes/A3

Inks

UV Inks CMYK+2White & 6Varnish/W

Application

UV: Most of flat items, regular cylinders, include phonecase, pens, golf ball, acrylic, wood, bottles.

UV DTF: Irregular Products, such as Helmet, MugCurves items.

Printing modes

8pass / 12pass / 16pass

Thickness

Up to 20cm ( 7.87inches )

Resolution

Up to 2880×720 dpi 16pass / 12pass / 8pass

Print head

On demand Epson XP600 Piezo electric printhead.

Made-in-Japan.

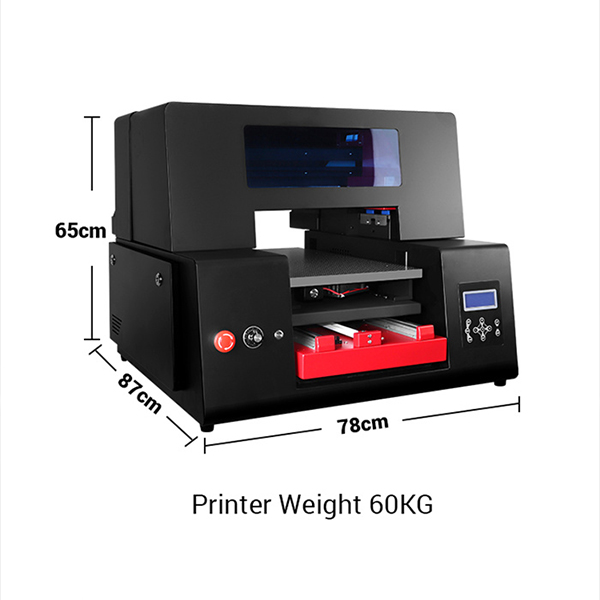

size

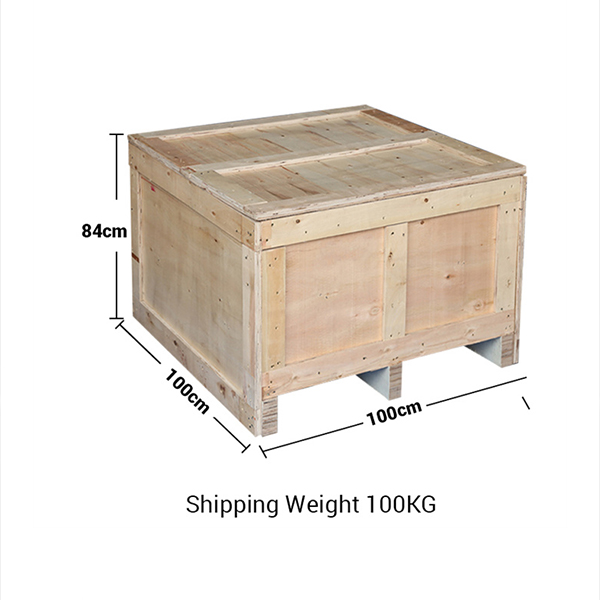

size2
