Choosing between an A3 UV printer and a 6090 UV printer mainly depends on your product size, daily production volume, workspace and future growth plans.
An A3 UV flatbed printer is usually better for startups, small workshops and businesses printing small customized products. An A1 UV printer offers a much larger printing area, better batch efficiency and more room for production upgrades.
In simple terms:
A3 UV Printer = Compact customization and lower entry cost
6090 UV Printer = Larger batches and growing production
This guide compares the two sizes based on real printing requirements rather than machine size alone.
Comparison | A3 / A3+ UV Printer | 6090 UV Printer |
Print area | 33 × 60 cm | 60 × 90 cm |

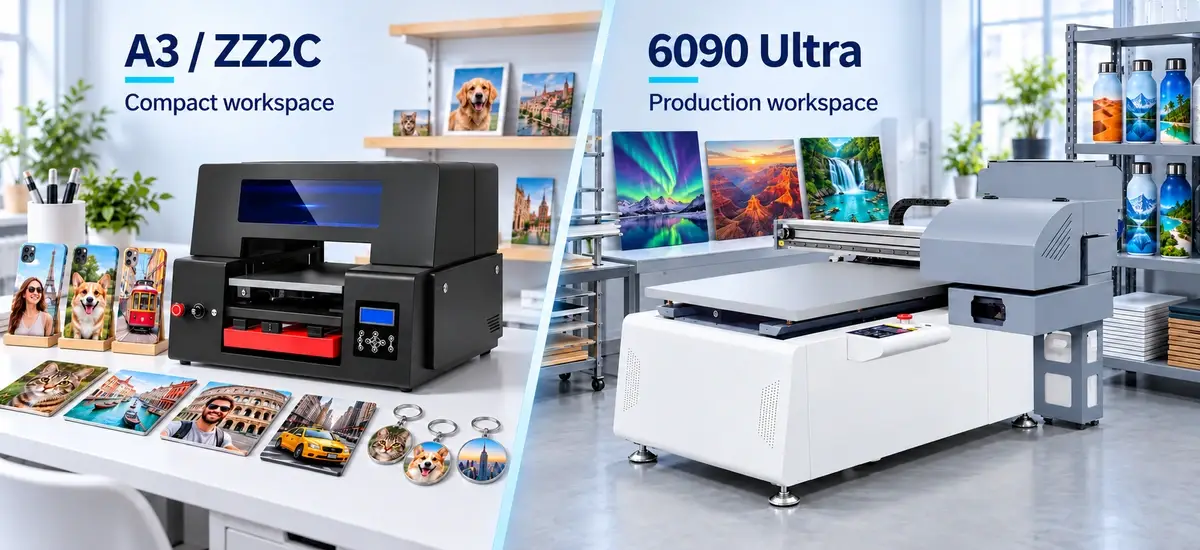

Workspace | Compact | Medium |
Batch capacity | Small to medium | Medium to large |
Best for | Startups and small customization businesses | Growing printing businesses |
Large product printing | Limited | More flexible |
CCD positioning | Not available | Available on 6090 Ultra |
Initial investment | Lower | Higher |
Future production expansion | Moderate | Stronger |
The most important difference is not simply the maximum printable size. A larger print bed also allows you to arrange more products in one printing cycle, which can significantly improve batch efficiency.
For low-volume personalization, an A3 size UV printer can be very efficient.
If a customer orders one phone case, several keychains or a small batch of souvenirs, there may be little benefit in using a much larger machine. The situation changes when order quantities increase.
With a 600 × 900 mm print bed, an A1 size UV printer can accommodate more products in one batch. Instead of repeatedly loading and unloading a smaller bed, the operator can prepare a larger group of products and complete more pieces in each printing cycle. This makes a 6090 flatbed UV printer particularly suitable for businesses receiving repeat orders for promotional products, gifts, souvenirs, acrylic items, phone cases, wooden products and metal plates.
For growing businesses, batch capacity is often a more important reason to upgrade than maximum print size.
A larger UV printer machine does not automatically mean every individual print is faster. Actual printing speed also depends on the printhead configuration, print mode, pass setting, ink layers and artwork.
The productivity advantage of a 6090 printer mainly comes from batch efficiency. For example, if the same order needs several loading cycles on an A3 UV printer but can be arranged in one or two batches on a 6090 UV printer, the larger machine reduces repeated positioning, loading and unloading time.
This difference becomes increasingly important as daily production grows. If your A3 UV printer is still completing orders comfortably, there may be no immediate reason to upgrade. If machine loading has become a bottleneck, a larger bed can make a meaningful difference.
CCD visual positioning is particularly useful for businesses that frequently print irregularly positioned or small products.
Traditional batch production often uses custom jigs. A jig fixes each product in a predefined position, allowing the artwork to match that location. This method works very well for repetitive production.

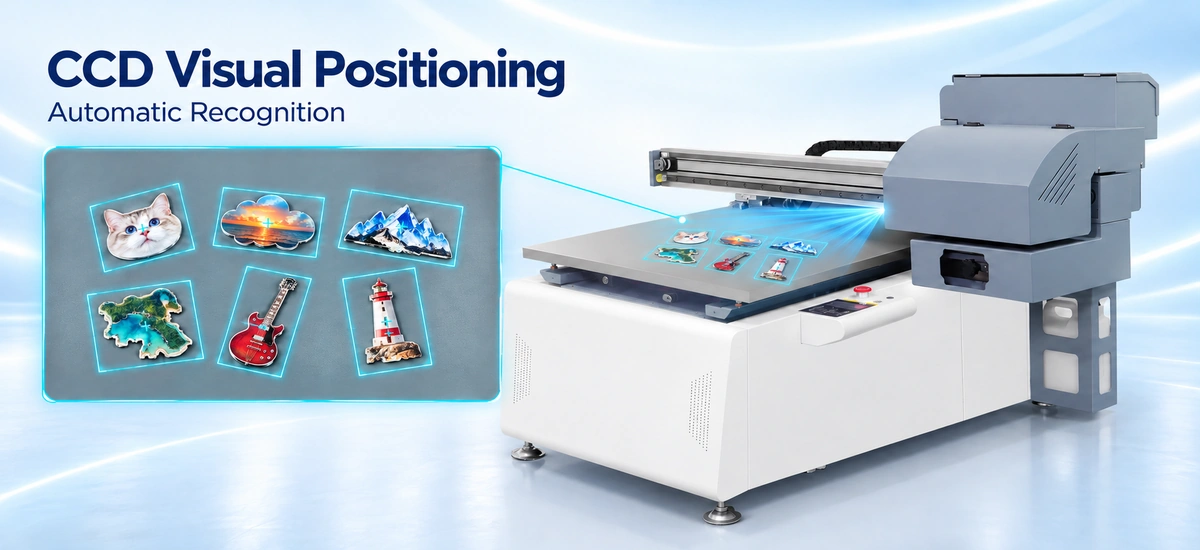

However, when products are small or irregular, manual alignment can take lots of additional time. The CCD visual positioning system on the Refinecolor 6090 Ultra uses an on-printer camera to automatically detect each item's shape and position. This reduces the need to manually align every object before printing.
It also supports independent zone scanning, providing more flexibility when handling different layouts. CCD positioning is especially useful for irregular and small items and businesses that frequently switch between all kinds of customized products.
If you mainly produce the same product repeatedly, a custom jig may still be the simpler solution.
For many startups, yes.
An A3 UV printer generally requires less investment, takes up less space and is large enough for many popular personalized products. It is a practical choice for businesses focusing on items such as phone cases, acrylic products, badges, small gifts, souvenirs and promotional products.
A smaller machine also allows a new business to test product demand before investing in larger production equipment. This is particularly important when the business model is still developing.
You should consider upgrading when the A3 printer begins limiting your workflow rather than your creativity.
One common sign is increasing batch frequency. If operators spend too much time repeatedly loading products onto a smaller printing bed, a 6090 UV DTF printer can reduce those cycles.

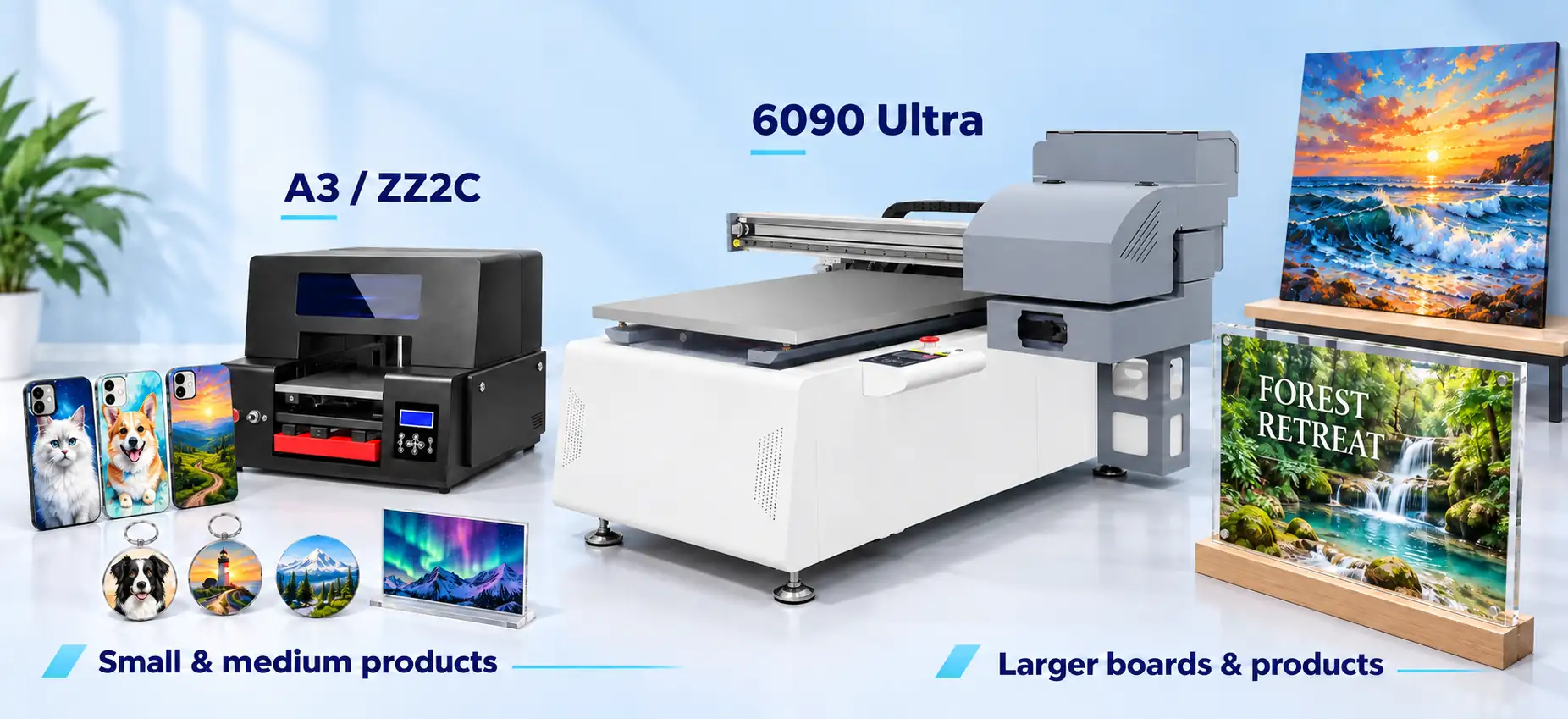

Another sign is product size. When customers begin requesting products that no longer fit comfortably on an A3 platform, the larger 60 × 90 cm working area gives you more flexibility.
Production growth is another important factor. If your business is moving from occasional personalized orders toward repetitive commercial batch orders, it may be time to prioritize productivity rather than minimum equipment cost.
For most buyers, the decision can be simplified like this:
Choose an A3 UV Printer If | Choose a 6090 UV Printer If |
You are starting a customization business | Your customization business is growing |
Most products are small | You need larger printing space |
Order quantities are relatively low | Batch orders are increasing |
Workspace is limited | You have a dedicated production area |
Lower initial investment is important | Production efficiency is more important |
You mainly print individual customized items | You frequently print multiple products per batch |
Neither size is universally better.
The right UV printer is the one that matches your current products, production volume and expected growth.
Q: Is a 6090 UV printer faster than an A3 UV printer?
A: Not necessarily for a single item. Printing speed depends on the printhead, print mode, pass settings and ink configuration. The main advantage of a 6090 UV printer is that its larger bed can accommodate more products per batch, improving overall production efficiency.
Q: What can a 6090 UV printer print?
A: A 6090 A1 size UV printer can print customized products made from materials such as acrylic, wood, metal, glass, PVC, plastic and leather. Typical applications include phone cases, signs, keychains, promotional products, souvenirs and other flat items. Some configurations also support cylindrical products with a rotary device.
Q: Do I need CCD positioning on a UV printer?
A: Not always. Fixed jigs are effective when same products are placed in consistent positions. CCD visual positioning is more useful when product placement changes frequently or when you need to print small irregularly shaped objects.
Q: Can I use different printheads on a 6090 UV printer?
A: Depending on the printer configuration, different Epson printheads are available. Refinecolor provides configurations including genuine Epson F1080, i1600 or i3200 series printheads for you to choose according to your efficiency and quality requirements.
The difference between an A3 and 6090 UV printer is ultimately a difference in production scale.
An A3 UV printer is ideal for compact workspaces, startup businesses and low-to-medium-volume personalization.
A 6090 UV printer provides a larger 24 × 36 inches printing area, more batch capacity and greater flexibility for businesses moving toward regular commercial production.
If your current A3 UV flatbed printer can comfortably handle your products and daily orders, there may be no reason to upgrade immediately. But when product size, repeated loading or growing batch orders start limiting production, a 6090 UV printer can provide the additional capacity needed for the next stage of your business.
For buyers comparing different UV printer sizes, Refinecolor offers A3, A2 and 6090 UV printing solutions for different business scale and production requirements.
