Refinecolor RF-ZP1 Multi-function Smart Wifi A5 UV Printer For Coins, Golf Ball, Phone Cases, Power bank and Mobile Electronics Printing

Refinecolor RF-ZP1 Multi-function Smart Wifi A5 UV Printer For Coins, Golf Ball, Phone Cases, Power bank and Mobile Electronics Printing

Name: Refinecolor RF-ZP1 Multi-function Smart Wifi A5 UV Printer For Coins, Golf Ball, Phone Cases, Power bank and Mobile Electronics Printing
Brand: Refinecolor
SKU: 518794717
Rating: 5.0 (47 reviews)

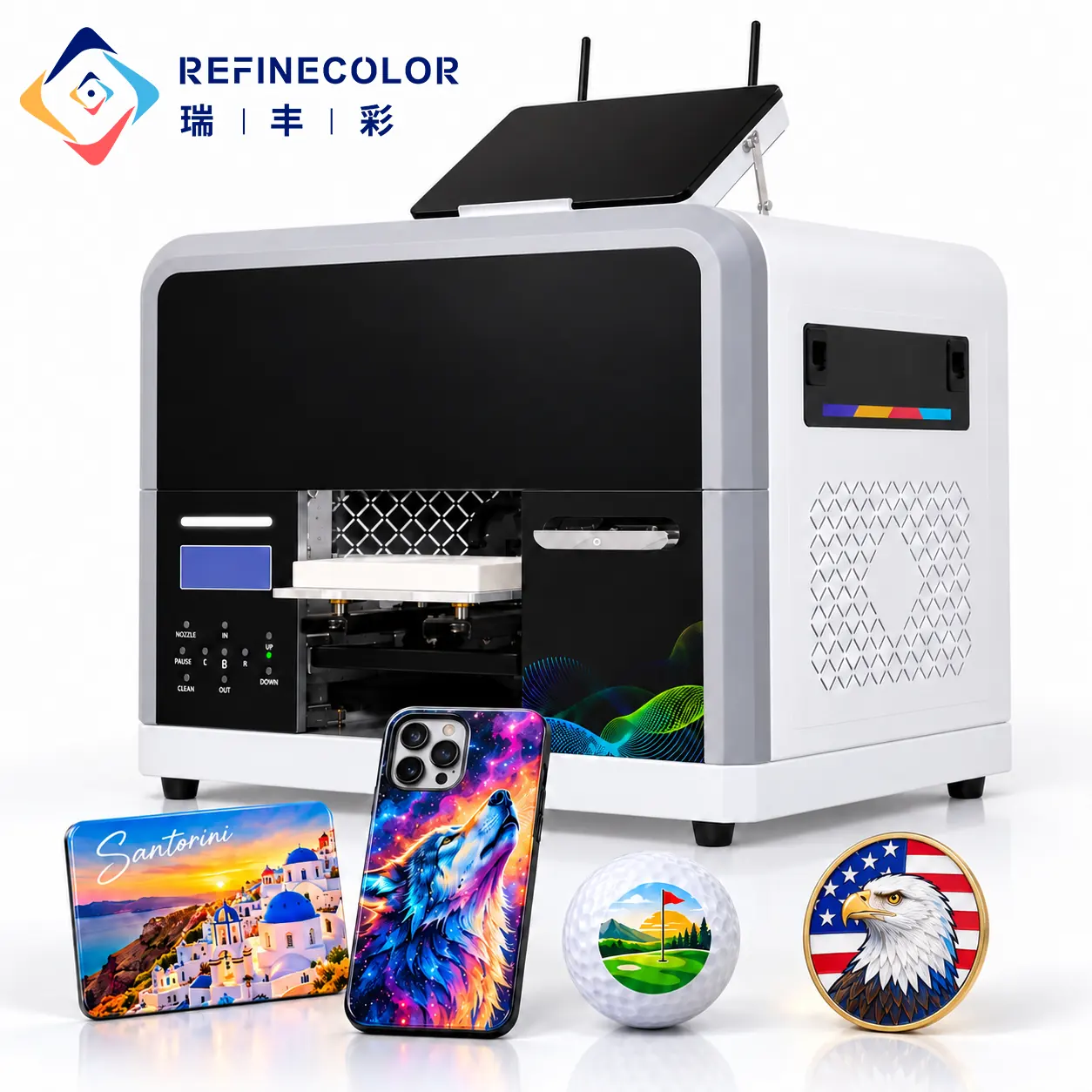

Refinecolor ZP1 Smart UV Printer is a compact A5 UV flatbed printer for small businesses, gift shops, and on-demand customization. Equipped with an original Epson F1080 printhead, it produces vivid prints on phone cover, golf balls, commemorative coins, acrylic keychains, and fridge magnets. Smart phone image online uploading and replaceable product jigs make personalized gift printing easier.

Technical Highlights

Print Head: Single original Epson F1080
Print Size: 200*168mm
Print Height: 8cm
Ink Type: UV-curable ink
Ink Configuration: CMYK / CMYK + White
Connectivity: Wi-Fi

Top Features

Stable Printing Control: The Hoson N10 mainboard works with 2-in-1 PrintExp software for reliable printing control and easier operation.

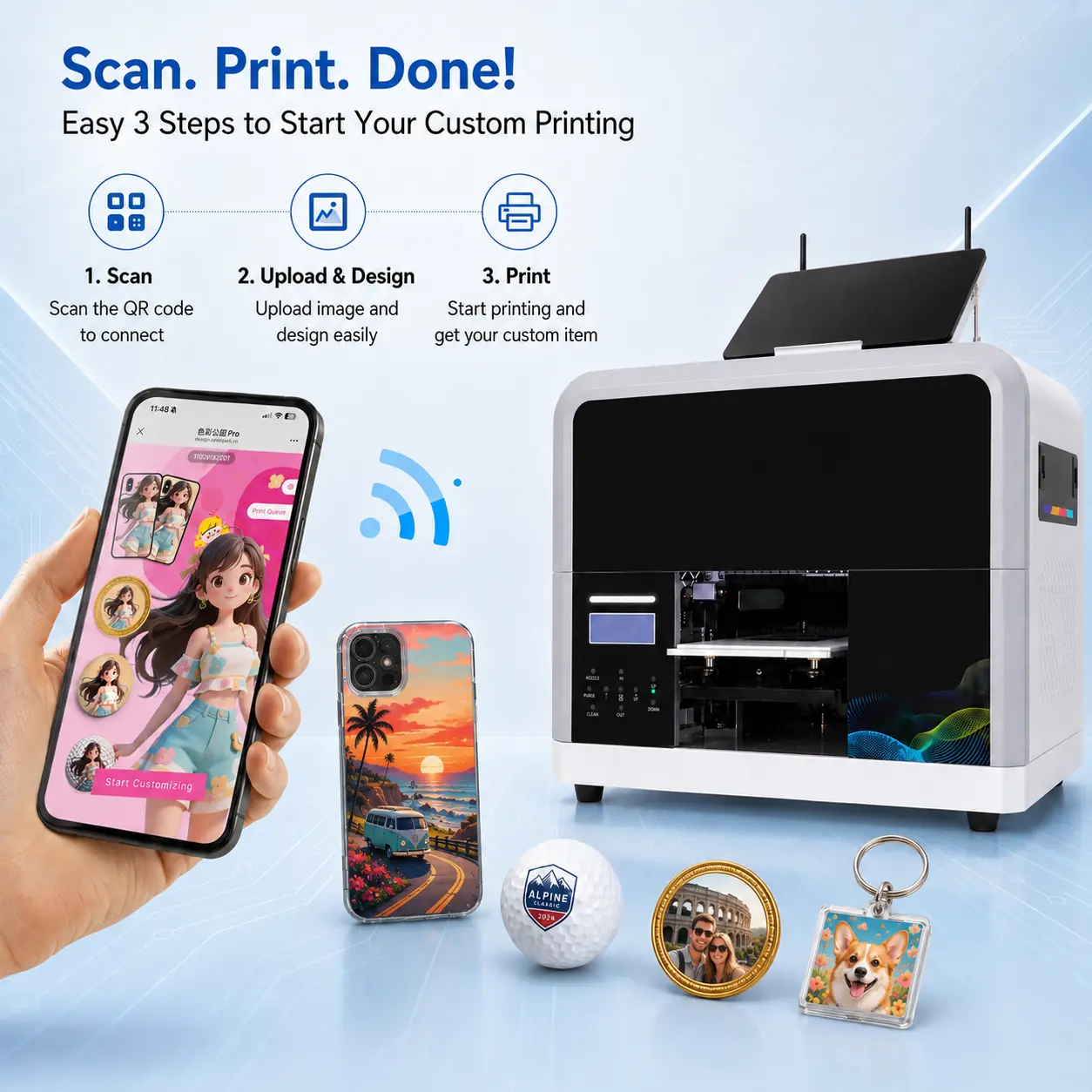

Smart phone Image Upload: Customers can scan a QR code to upload photos through ColorPark with mobile phone, simplifying the workflow for in-store customization.
One Printer, Multiple Products: Replaceable product jigs enable quick switching between different items printing and expand your custom gift range with one machine.

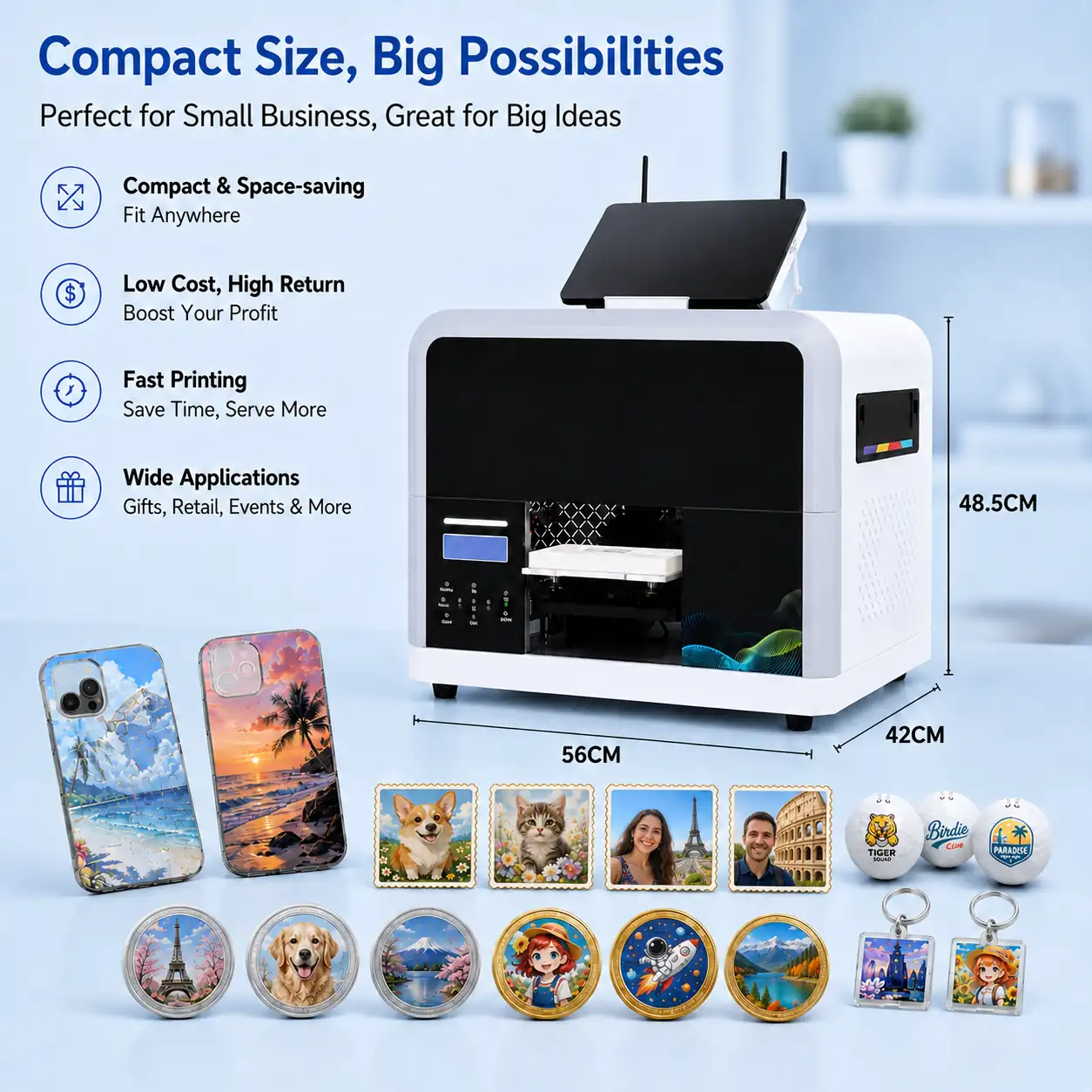

Compact Desktop Design: Measuring 56 × 42 × 48.5 cm and weighing 38.5 kg, this small UV printer fits conveniently into gift shops, retail counters, kiosks and customization studios.
Smart AI Customization: Built-in AI customization function helps users diversify uploaded images with more interesting effect and create more personalized print designs.

Warranty: 1 year (continuous ink supply system, printheads, and ink capping station excluded).

Quantity:
Voltage:	110V 220V
Availability:





Inquiry

Model:
RF-ZP1
Brand:
Refinecolor
Code:
RF-ZP1

Product Features

Product Specification

How to Use

Application

FAQ

Product Features

The ZP1 smart A5 UV printer is designed to be user friendly and easy to operate for more diverse scenarios, making it an intelligent UV printing solution for all kinds of business. It combines compact design, AI customization, and easy mobile uploading function, helping small businesses create personalized phone cases, golf balls, puzzles, power banks, fridge magnets, commemorative coins and other gifts with a simple printing workflow.

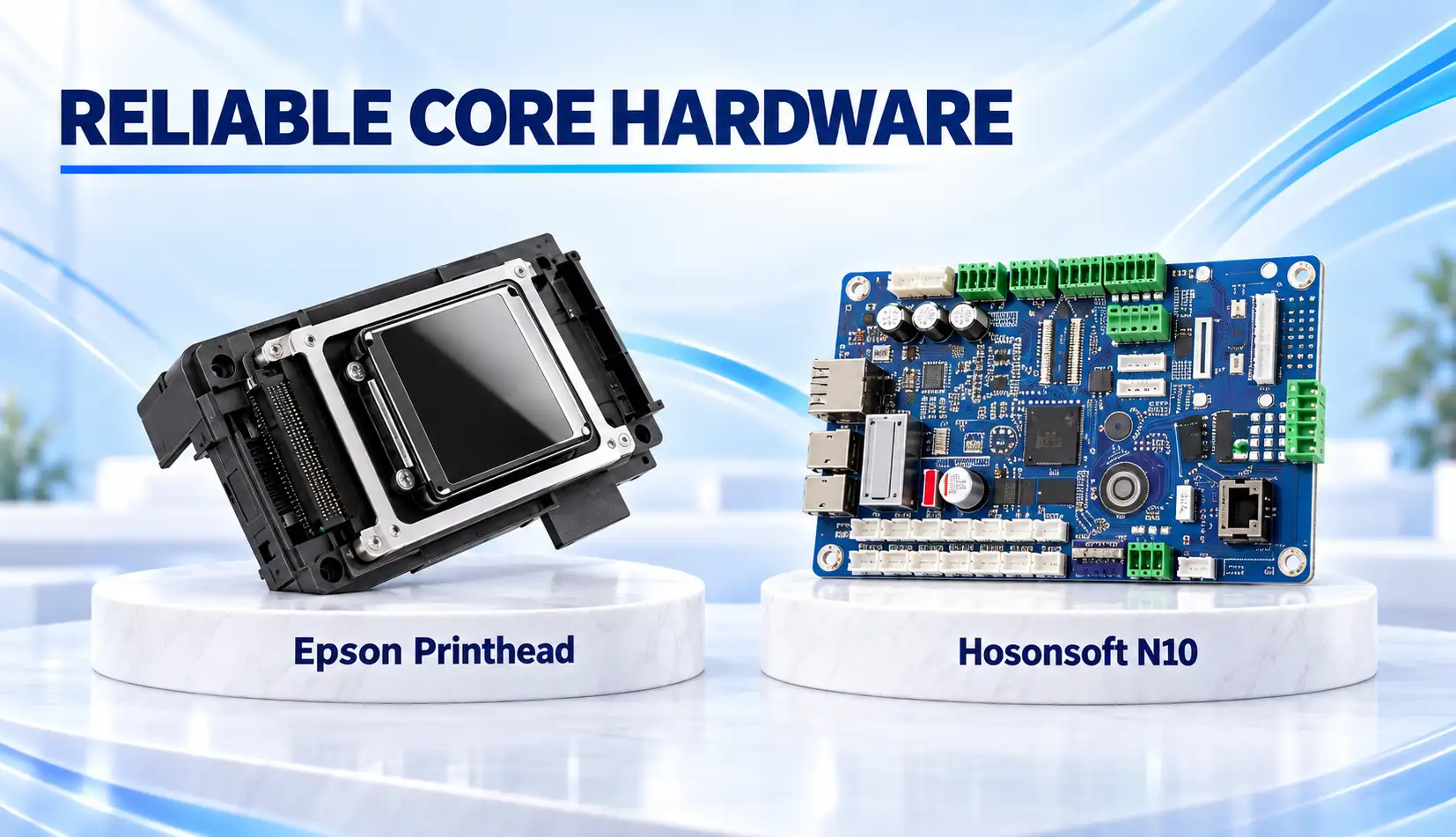

Reliable Hardware

An original Epson F1080 printhead and Hosonsoft N10 mainboard support consistent UV printing, helping businesses produce detailed artwork with vibrant colors..

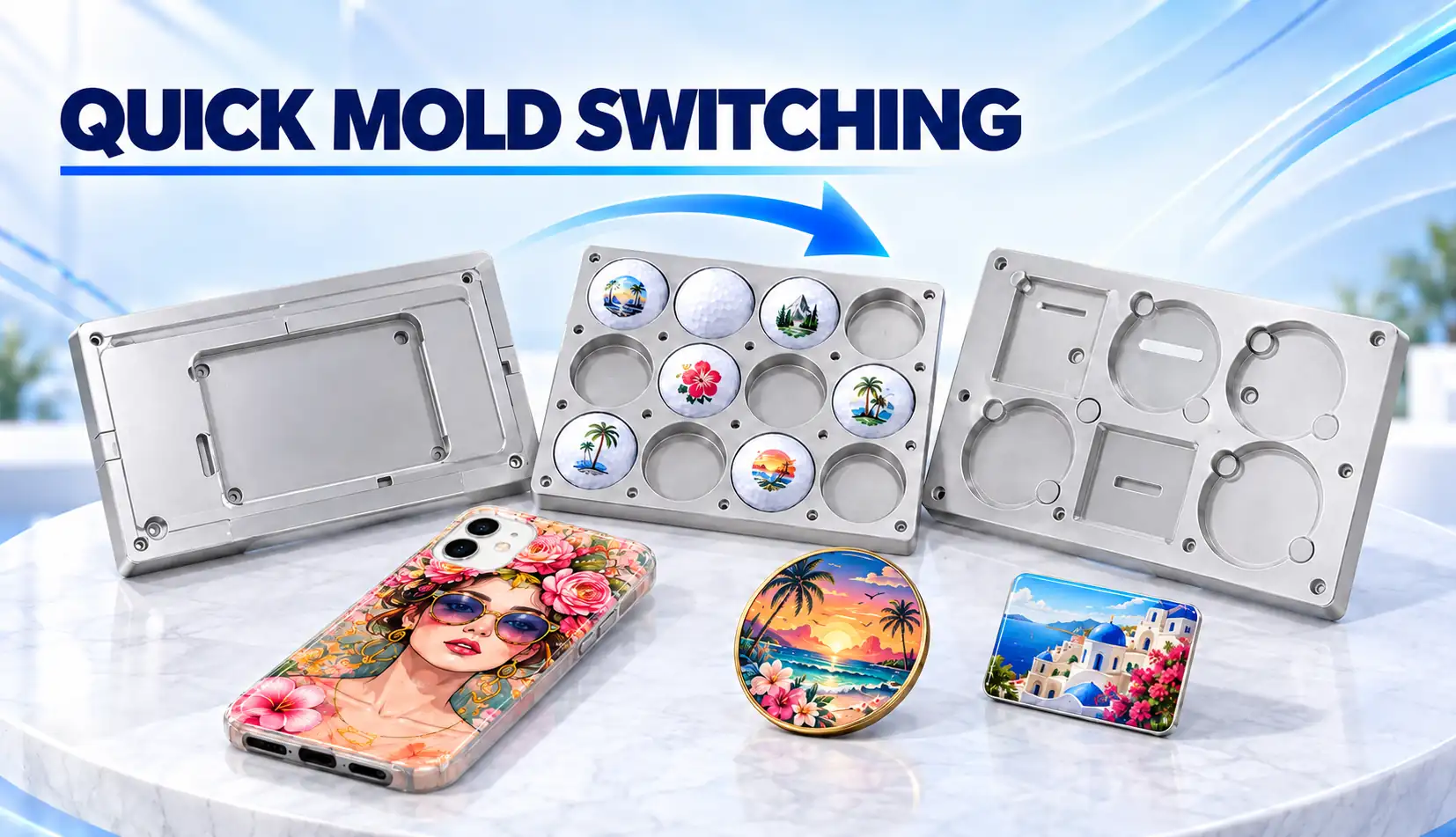

Quick Mold Switching

Replaceable printing fixtures help the ZP1 UV printer customize phone cases, golf balls, badges, souvenir coins, and fridge magnets more efficiently in one machine.

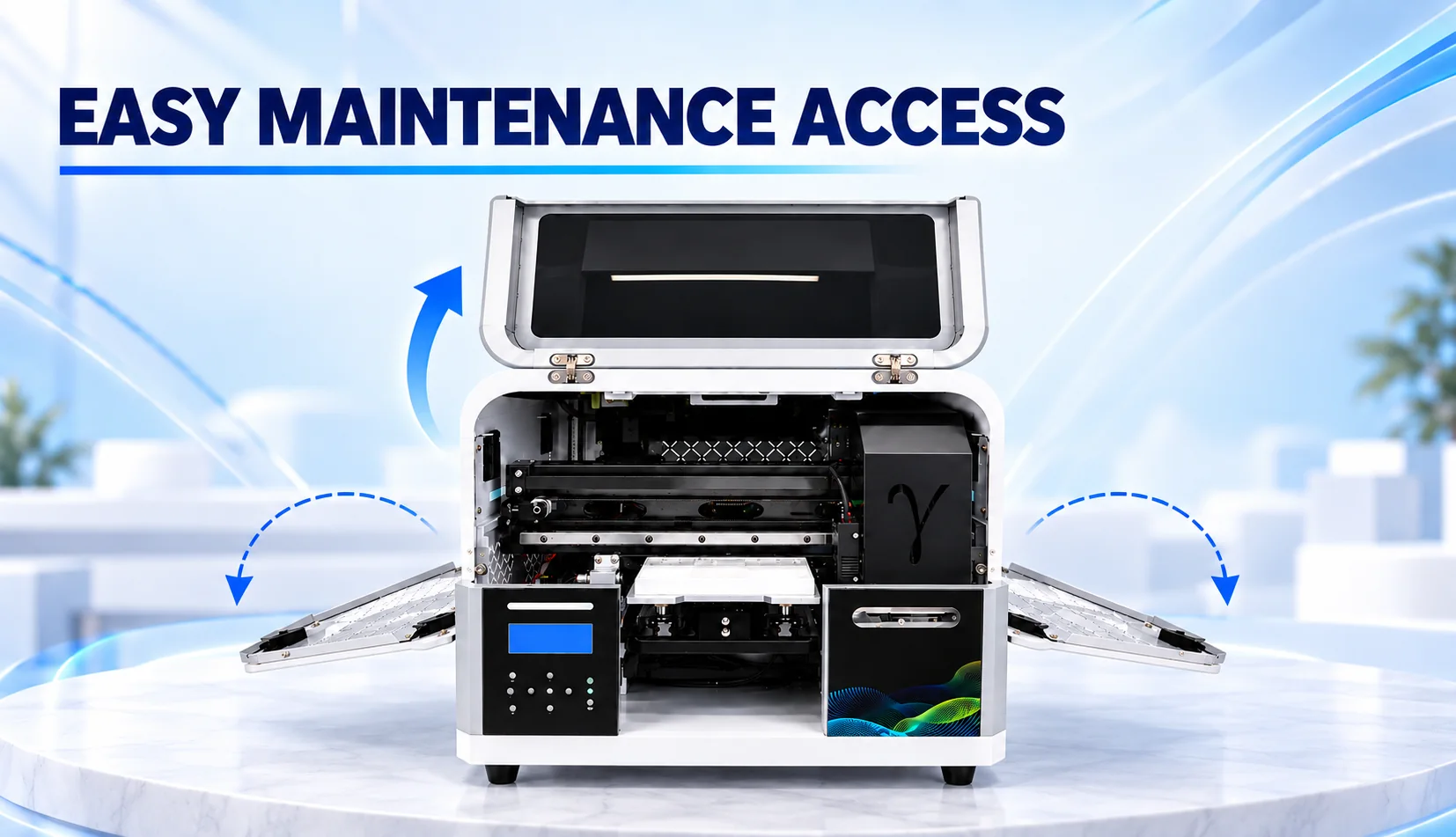

Easy Maintenance Access

The ZP1 UV printer features an openable front cover and side panels, providing convenient access for inspection and maintenance.

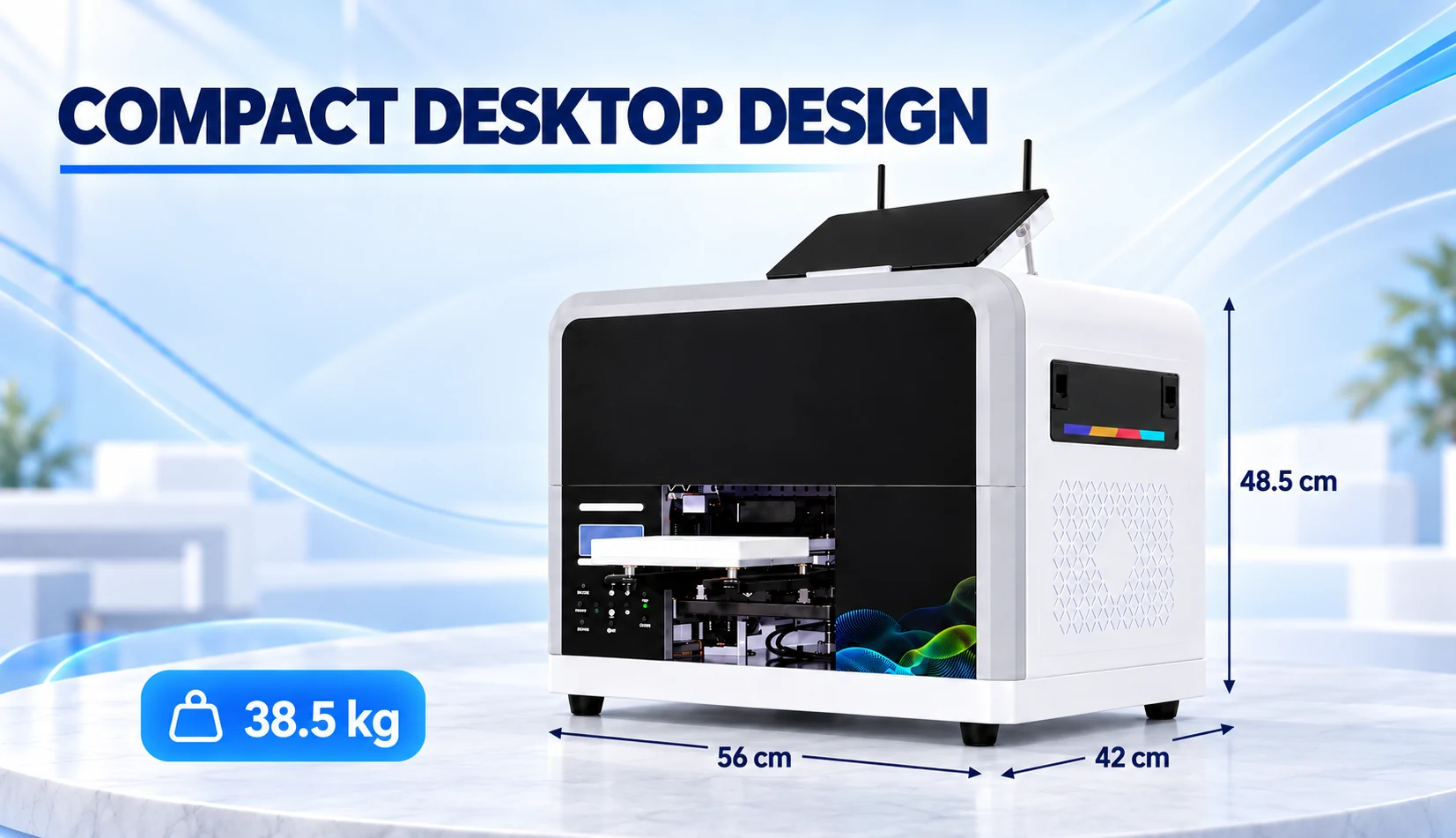

Compact Desktop Design

The compact ZP1 desktop UV printer saves workspace while offering versatile customization for gift shops, studios, and growing small businesses.

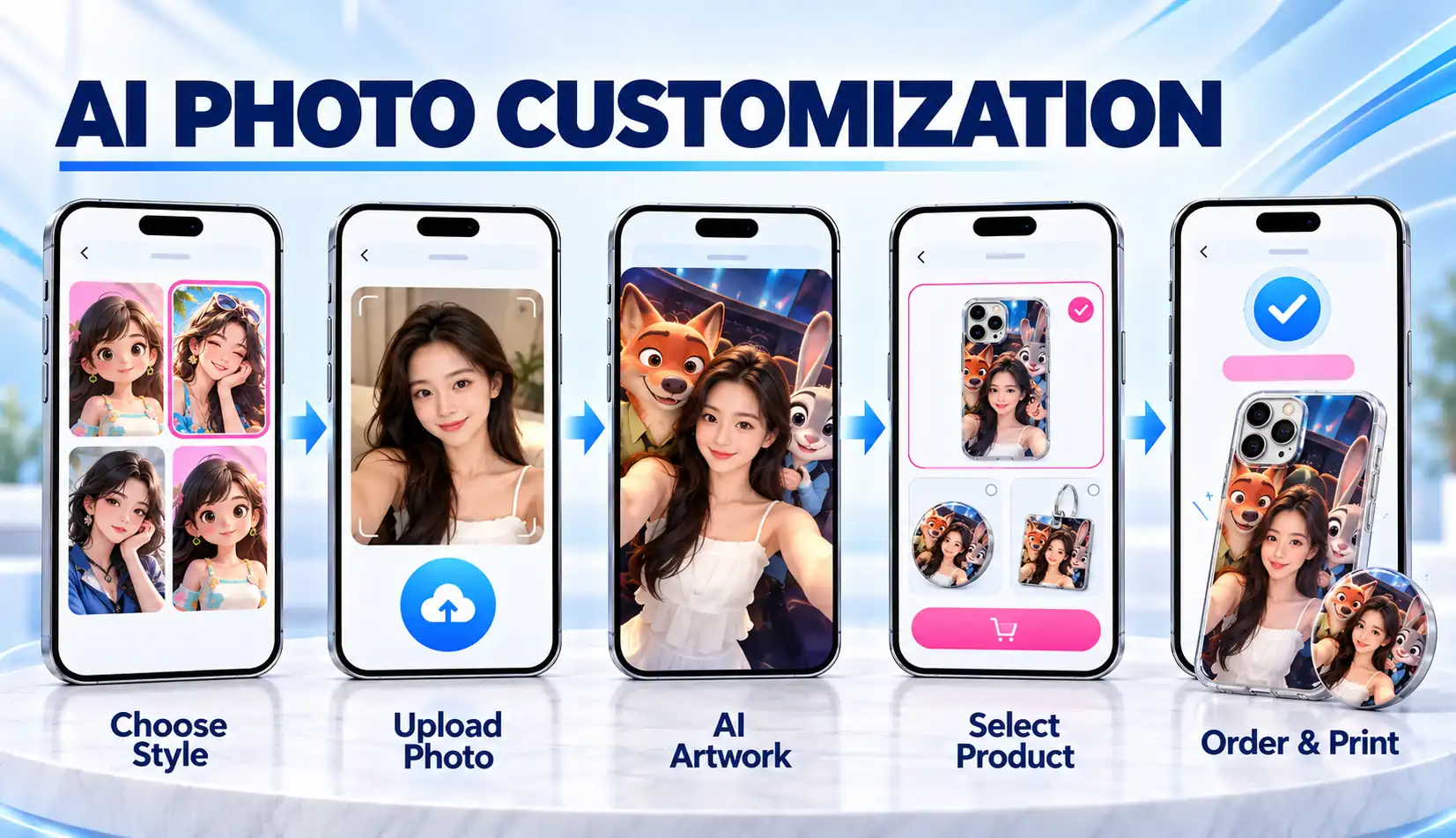

Smart AI Customization

The ZP1 smart UV printer combines mobile image uploading and AI artwork customization to create more personalized and meaningful phone cases and gifts.

Online Device Management

ZP1 smart UV printer’s mobile software and application supports monitoring ink levels, receiving shortage alerts, managing device and printing tasks more easily online

Product Specification

Printing Size	20×16.8cm
Printing Technology	Micro-piezo wavy inkjet
Printing Speed	2mins/case
Inks Type	UV inks
Printing Pass	8pass/12pass/16pass
Printing Height	8cm
Print head	Epson F1080 * 1 pc
Resolution	Up to 2880x720 dpi
Working environment	Temperature 10°C-40°C; Humidity: 20%-80%
Printing Mode	CMYK/CMYK+WW
Rip software	PrintExp
Printer Dimension	56x42x48.5cm
Net Weight	38.5KGs
Package Size	70×53×68cm
Gross Weight	59KGs

How To Use

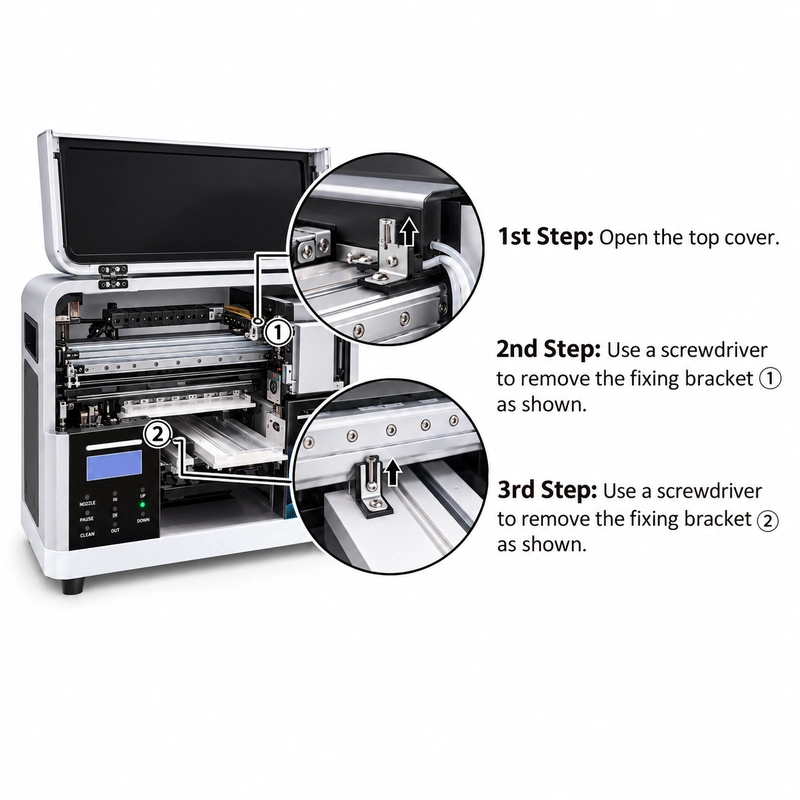

Remove the fixing device

Step 1

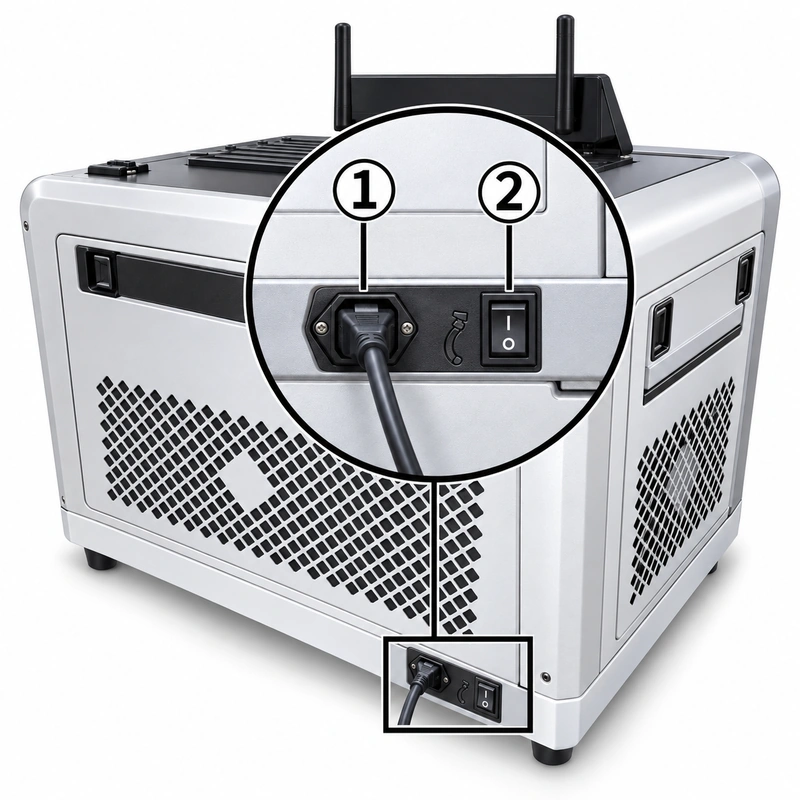

Power on the printer

Step 2

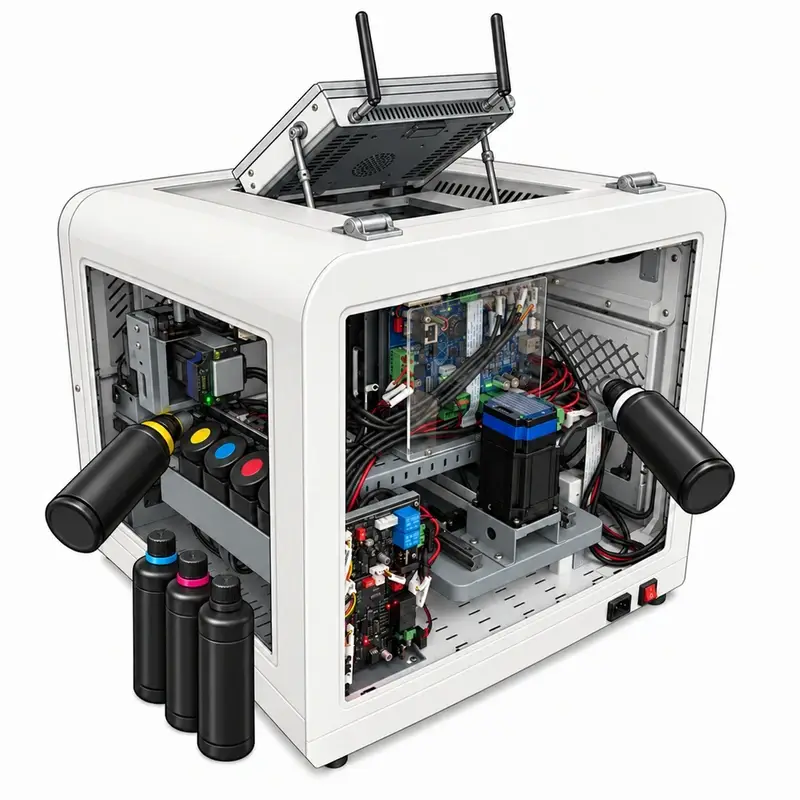

Filling ink into the cartridge

Step 3

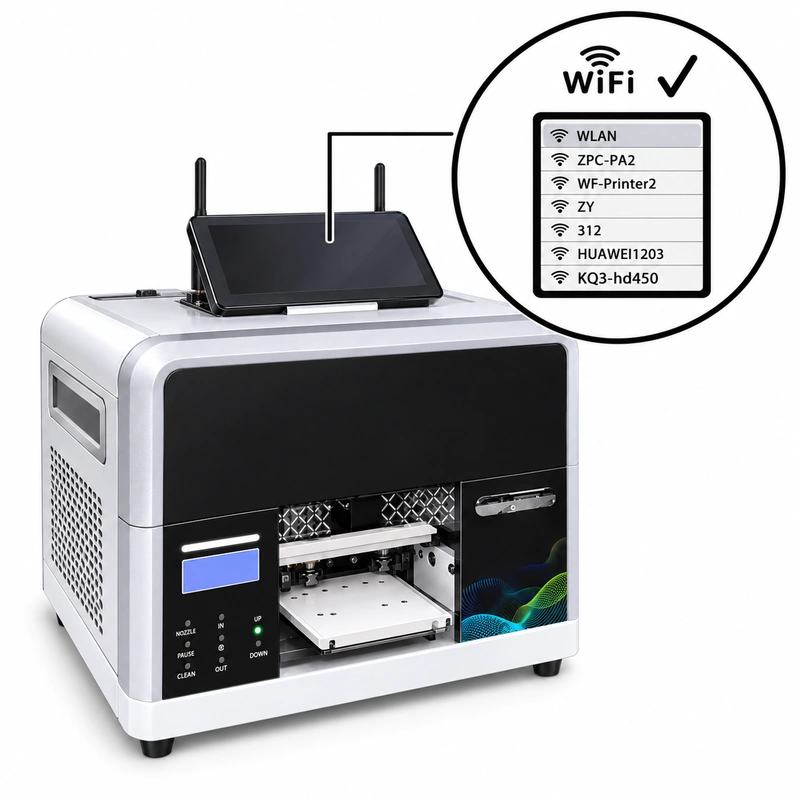

Connect to network

Step 4

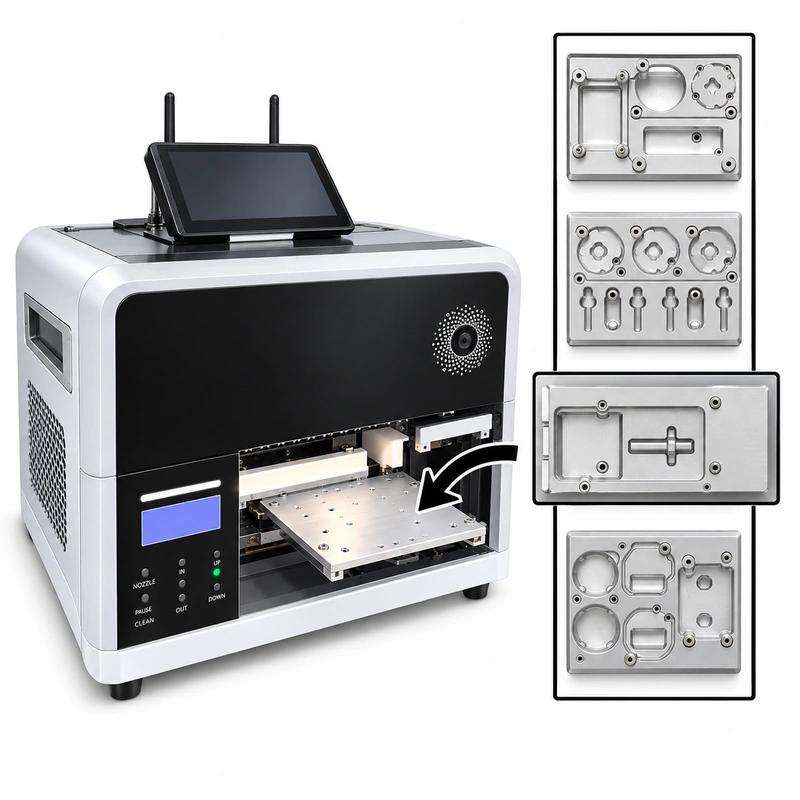

Place the product fixture

Step 5

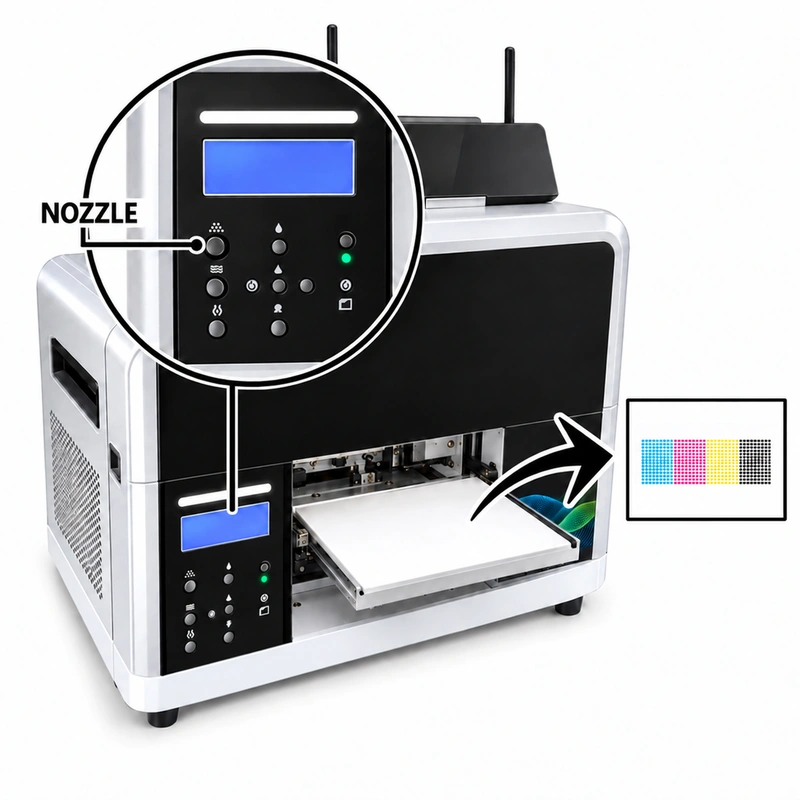

Nozzle inspection

Step 6

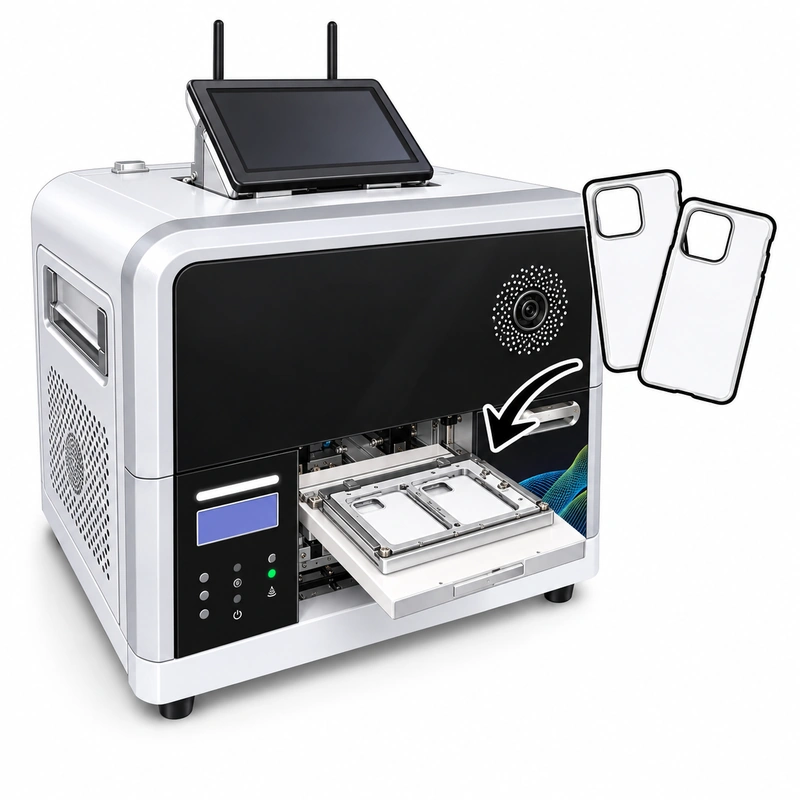

Place Your Product On The Platform

Step 7

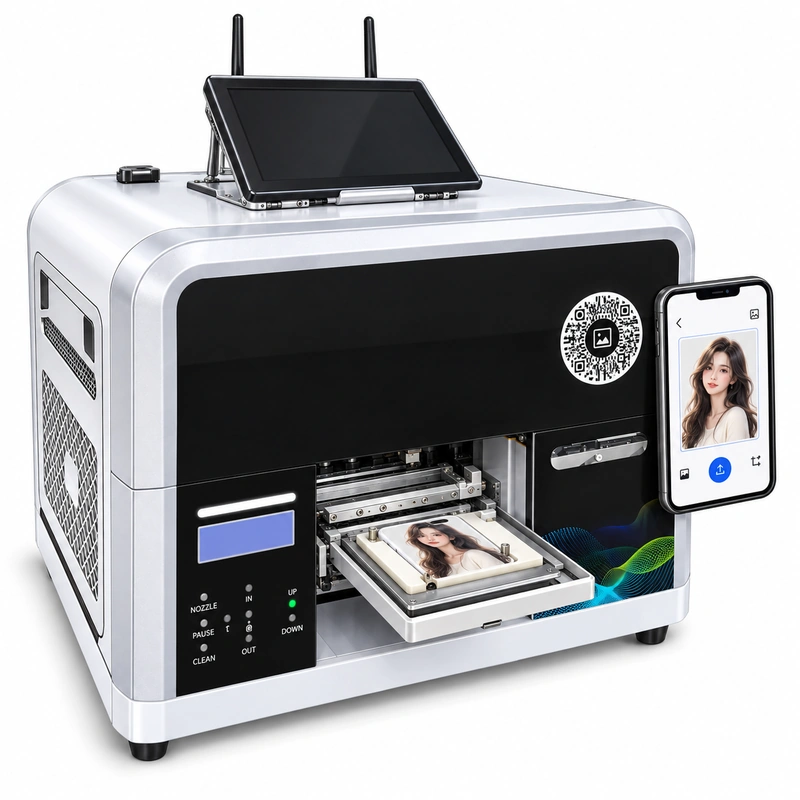

Scan the QR code to upload design

Step 8

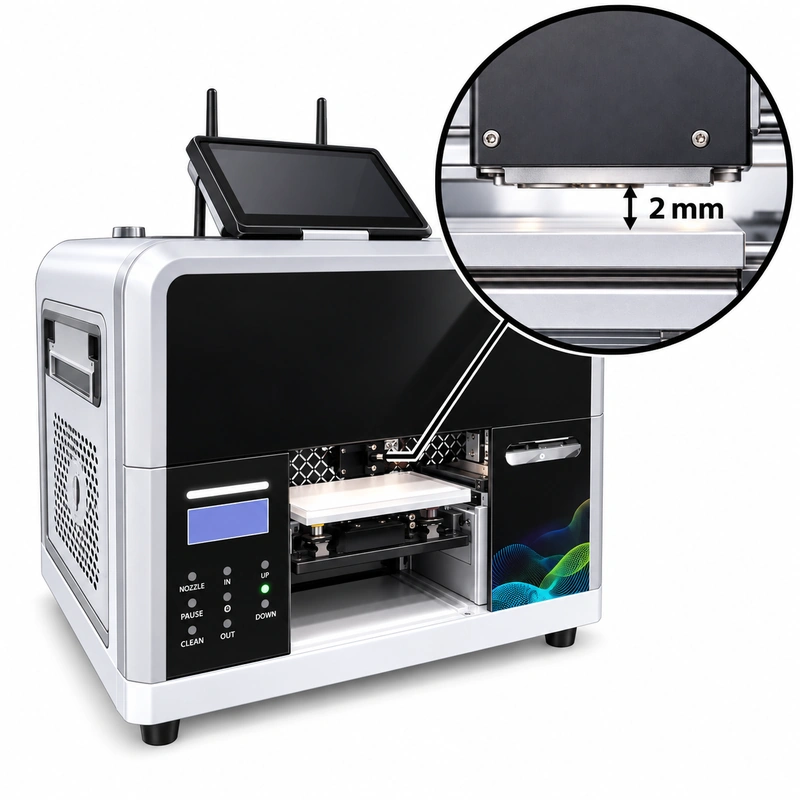

Set the printing height to 2mm

Step 9
Click print on mini PC to print

Step 10

Applications of ZP1 Smart UV Printer

Explore ZP1 Smart UV printer applications for personalized phone cases, golf balls, fridge magnets, commemorative coins, badges and other souvenirs. Bring colorful designs to custom products for gift shops, tourist attractions, retail counters, kiosks and small printing businesses.

Phone Cases

Commemorative Coins

Golf Balls

Jigsaw Puzzles

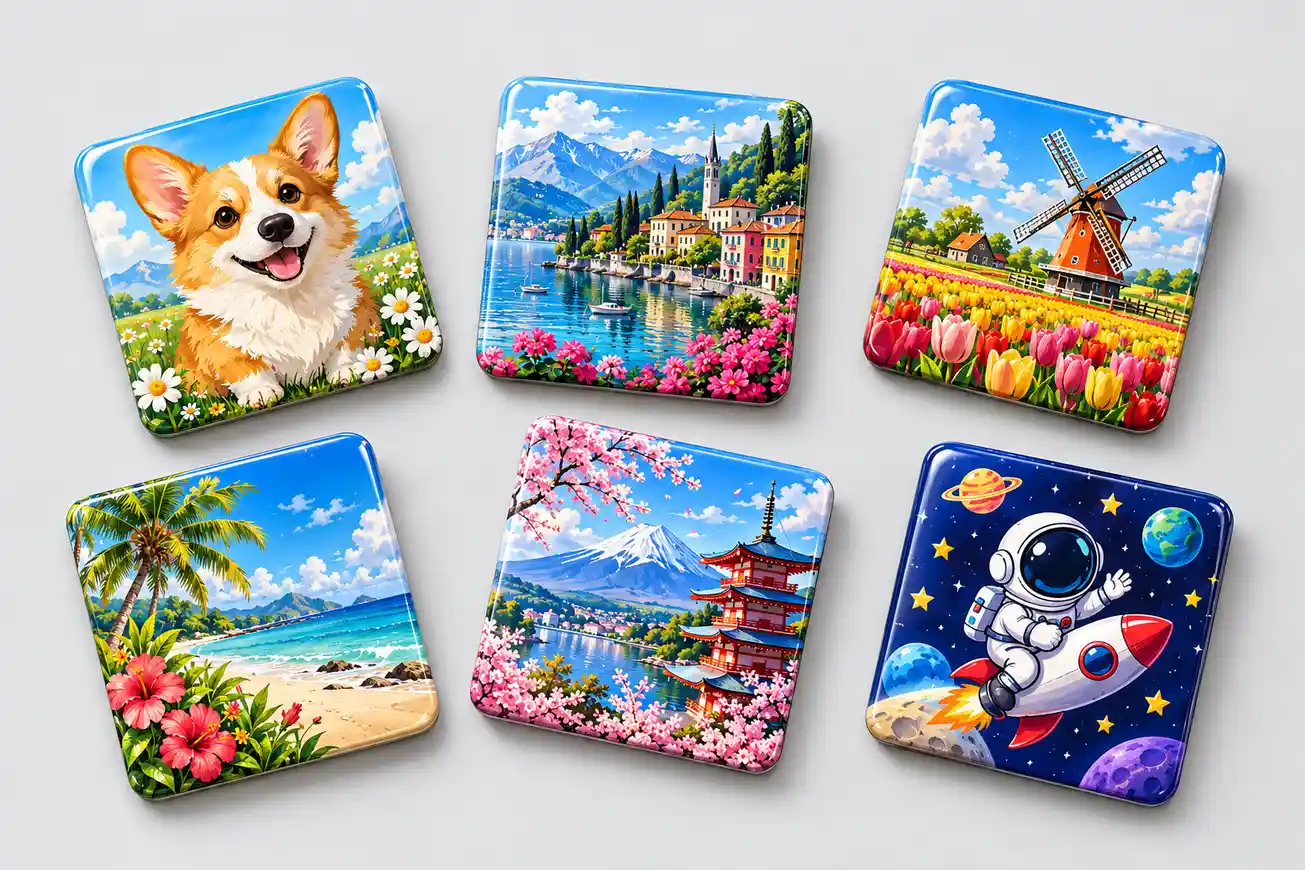

Fridge Magnets

Acrylic Keychains

Tin Badges

Earbud Cases

FAQ About ZP1 Smart UV Printer

Can the ZP1 print different products in batches?

Yes. Custom product jigs of the ZP1 smart UV printer can hold multiple fridge magnets, badges, keychains, golf balls and other products in fixed positions for stable batch printing.

How do customers upload images to the ZP1 printer?

Can the ZP1 continue previous printing orders?

How easy is it to maintain the ZP1 Smart UV Printer?

Does the ZP1 Smart UV Printer support connecting with my own website?

Get A Quotation

If you have customization needs or want to know more about our ZP1 Smart UV Printer, please feel free to contact us.

We will provide you with one-on-one professional services to start a new chapter of win-win cooperation!
